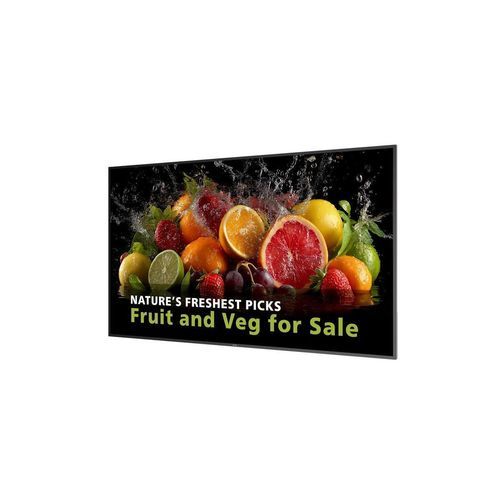

Wall-mounted display panel 75BDL5050D/00

indoorcommercialsmart

Product overview
The Philips Signage 5000 75BDL5050D/00 is a 75" professional digital signage display with Android 14 and 4K UHD resolution. Built for continuous 24/7 operation, it provides commercial-grade connectivity and system integration for retail, corporate and public environments.

Series
Signage 5000 Series / D-Line

Size
75” (74.5" / 189.3 cm)

Available sizes / Variants

• 98”
• 86”
• 75”
• 65”
• 55”
• 50”
• 43”
• 32”

Connectivity
Inputs: DisplayPort 1.4, HDMI 2.0, USB-C. Outputs: HDMI 2.0, 3.5 mm audio jack. External control: RJ45, RS232C (2.5 mm), IR (3.5 mm), Wi‑Fi 6, Bluetooth 5.2. Other: 4G/LTE antenna connectors, Micro USB, USB 3.0.

Convenience
Placement: Landscape or Portrait. Network control: RS232, RJ45, external 4G mPCIe slot. Screen-saving: Pixel Shift. Tiling: up to 10 x 15. Signal loop-through: RS232, IR loop, HDMI1/2, Android SoC. Keyboard control: hidden and lockable.

Accessories (included)

• RS232 daisy-chain cable
• Philips logo
• AC switch cover
• USB cover
• Screws
• AC power cord
• IR sensor cable
• Quick start guide
• Remote control and AAA batteries
• RS232 cable
• CRD32 Wi‑Fi and BT module

Internal Player
CPU: 4 × A72 + 4 × A53 (RK3576) + MT9800. GPU: ARM Mali G52 MC3. Memory/Storage: 4 GB RAM / 32 GB storage.

Dimensions & Weight
Set width: 1683.5 mm (66.28 in). Set height: 961.7 mm (37.86 in). Depth: 95.3 / 69.5 mm (3.75 / 2.74 in). Product weight: 37 kg (81.48 lb). Bezel width: 14.9 mm. Wall mount: VESA 600 × 400 mm, M8.

Sound
Built-in speakers: 2 × 10 W RMS.

Power
Typical power consumption: 112 W (EEI lot5). Mains: 100–240 VAC, 50/60 Hz. Standby: <0.5 W. Energy label class: F.

Multimedia Applications
USB video playback: MPEG, H.263, H.264, H.265, AVI, MP4, MPEG4, VP8, VP9, WEBM. USB picture: BMP, JPEG, PNG. USB audio: AAC, HEAAC, MPEG.

Miscellaneous
Regulatory: CE, RoHS, CB. OSD languages include English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified and Traditional Chinese, Arabic, Japanese and others. Warranty: 3 years.

Operating conditions
Storage temperature: -20 to 60 °C. Operating temperature: 0 to 40 °C. Humidity (storage): 5–95% RH. Humidity (operation): 20–80% RH. Altitude: 0–3000 m. Ingress protection: IP5X. MTBF: 50,000 hours.

Picture / Display
Operating system: Android 14. Panel: ADS, 3840 × 2160 (4K UHD). Brightness: 600 cd/m². Contrast ratio (typ.): 1200:1. Dynamic contrast: 500,000:1. Pixel pitch: 0.4296 × 0.4296 mm. Optimum resolution: 3840 × 2160 @ 60 Hz. Response time (typ.): 8 ms. Viewing angle: 178° horizontal / 178° vertical. Display colours: 1.07 billion. Haze: 25%.

Supported Display Resolution
Video formats: 1080p 50/60 Hz, 1080i 50/60 Hz, 480p 60 Hz, 576i/p 50 Hz, 720p 50/60 Hz, 480i 60 Hz. Computer formats include common resolutions from 640 × 480 up to 1920 × 1080 @ 60 Hz.

Technical specifications

• Model: 75BDL5050D/00
• Series: Signage 5000 Series (D-Line)
• OS: Android 14 (built-in SoC)
• Panel resolution: 3840 × 2160 (4K UHD)
• Brightness: 600 cd/m²
• Diagonal: 75” / 74.5" (189.3 cm)
• CPU: 4 × A72 + 4 × A53 (RK3576) + MT9800
• Memory/Storage: 4 GB RAM / 32 GB
• Inputs: DisplayPort 1.4, HDMI 2.0, USB-C
• Outputs: HDMI 2.0, 3.5 mm audio jack
• Network: RJ45, Wi‑Fi 6, Bluetooth 5.2, optional 4G/LTE
• Power consumption (typ.): 112 W (EEI lot5)
• IP rating: IP5X
• Warranty: 3 years
• Mounting: VESA 600 × 400 mm, M8
