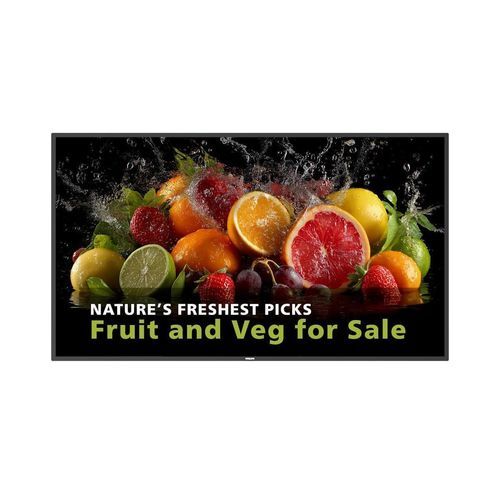

Wall-mounted display panel 55BDL5050D/00

indoorfor public spacecommercial

Overview
Philips Signage 5000 — versatile 24/7 professional display powered by Android 14. Delivers 4K clarity, 600 cd/m² brightness and wide viewing angles for retail, corporate and public environments.

Series
Philips Signage 5000 Series / D-Line

Size
55" (54.6 inch diagonal)

Available sizes

• 98”
• 86”
• 75”
• 65”
• 55”
• 50”
• 43”
• 32”

Connectivity
Video input: DisplayPort 1.4, HDMI 2.0, USB-C
Other connections: 4G/LTE antenna connectors, Micro USB, USB 3.0
External control: RJ45, RS232C 2.5 mm jack, IR 3.5 mm jack, Wi‑Fi 6, Bluetooth 5.2
Audio output: 3.5 mm jack
Video output: HDMI 2.0

Convenience
Placement: Landscape, Portrait
Keyboard control: Hidden, Lockable
Signal loop through: RS232, IR Loop through, HDMI1, HDMI2, Android SoC
Tiled Matrix: Up to 10 x 15
Network controllable: RS232, External 4G mPCIe slot, RJ45
Screen-saving functions: Pixel Shift
Energy-saving functions: Smart Power

Accessories (included)

• RS232 daisy-chain cable
• Philips logo
• AC Switch Cover
• USB Cover
• Screws
• AC Power Cord
• IR sensor cable
• Quick start guide
• Remote control and AAA batteries
• RS232 cable
• CRD32 Wi-Fi and BT module

Internal Player
CPU: 4 x A72 + 4 x A53 RK3576 + MT9800
GPU: ARM Mali G52 MC3
Memory: 4 GB RAM
Storage: 32 GB

Dimensions & Weight
Set Height (inch): 28.20 inch
Set Width (inch): 48.89 inch
Product weight (lb): 36.60 lb
Product weight: 16.6 kg
Set Depth: 63.6 mm (2.50 inch)
Bezel width: 13.9 mm
Set Width: 1241.8 mm
Set Height: 712.6 mm
Wall Mount: 400 x 400 mm, M6

Power
Standby power consumption: <0.5 W
Consumption: EEI lot5 72 W
Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Energy Label Class: F

Sound
Built-in speakers: 2 x 10 W RMS

Multimedia Applications (USB Playback)
Audio: AAC, HEAAC, MPEG
Video: MPEG, H.263, H.264, H.265, AVI, MP4, MPEG4, VP8, VP9, WEBM
Picture: BMP, JPEG, PNG

Miscellaneous
Warranty: 3 year warranty
Regulatory approvals: CE, RoHS, CB
On-Screen Display Languages:

• English
• French
• German
• Spanish
• Polish
• Turkish
• Russian
• Italian
• Simplified Chinese
• Traditional Chinese
• Arabic
• Japanese
• Danish
• Dutch
• Finnish
• Norwegian
• Portuguese
• Swedish

Picture / Display
Optimum resolution: 3840 x 2160 @ 60 Hz
Haze: 25%
Viewing angle (vertical): 178 degree
Viewing angle (horizontal): 178 degree
Contrast ratio (typical): 5000:1
Dynamic contrast ratio: 500,000:1
Panel technology: VA
Response time (typical): 8 ms
Operating system: Android 14
Picture enhancement: 3/2 - 2/2 motion pull down, Motion compens. deinterlacing, Dynamic contrast enhancement, Progressive scan
Display colours: 1.07 Billion
Diagonal screen size (metric): 138.7 cm
Brightness: 600 cd/m²
Pixel pitch: 0.315 × 0.315 mm
Panel resolution: 3840 x 2160

Operating conditions
Ingress protection: IP5X
Altitude: 0 ~ 3000 m
MTBF: 50,000 hour
Temperature range (operation): 0 ~ 40 °C
Humidity range (operation) [RH]: 20–80% RH
Humidity range (storage) [RH]: 5–95% RH
Temperature range (storage): -20 ~ 60 °C

Supported Display Resolution
Video formats: 1080p 50/60 Hz, 1080i 50/60 Hz, 480p 60 Hz, 576i 50 Hz, 576p 50 Hz, 720p 50/60 Hz, 480i 60 Hz
Computer formats: 1024 x 768 60 Hz, 1280 x 1024 60 Hz, 1280 x 720 60 Hz, 1440 x 900 60 Hz, 1600 x 900 60 Hz, 1680 x 1050 60 Hz, 1920 x 1080 60 Hz, 640 x 480 60 Hz, 800 x 600 60 Hz
