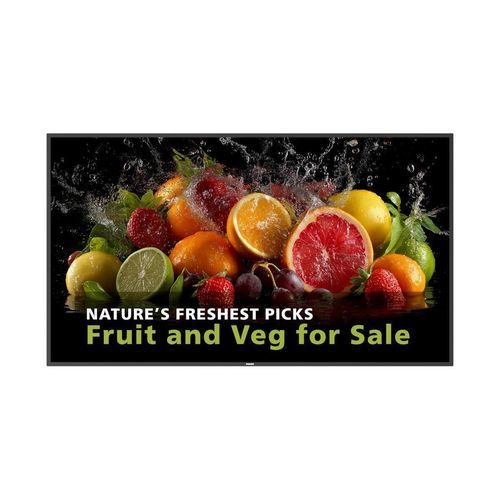

Wall-mounted display panel 65BDL5050D/00

indoorcommercialsmart

Overview
The Philips 65BDL5050D/00 is a 65-inch professional digital signage display designed for 24/7 operation. It delivers 4K resolution on an ADS panel with 600 cd/m² brightness and runs Android 14 for easy content integration and remote management.

Applications
Suitable for retail, corporate communication, transportation hubs, education and public venues requiring continuous, high-resolution signage.

Key features

• Model: 65BDL5050D/00 — Signage 5000 (D-Line)
• Display: 3840 x 2160 (4K), ADS panel, 64.5" diagonal, 600 cd/m², 1200:1 contrast (typ.)
• Operating system: Android 14 with onboard 4 GB RAM and 32 GB storage
• Built-in player CPU/GPU: RK3576 (4×A72 + 4×A53) + MT9800 / ARM Mali G52 MC3
• Designed for 24/7 use; IP5X certified

Connectivity & I/O

• Video input: DisplayPort 1.4, HDMI 2.0, USB-C
• Video output: HDMI 2.0
• USB: USB 3.0, Micro USB
• Audio: 3.5 mm output, 2×10 W RMS speakers
• Network & control: RJ45, Wi‑Fi 6, Bluetooth 5.2, RS232C, IR, 4G/LTE antenna/connectors, external 4G mPCIe slot

Multimedia & Performance
Supports wide range of video (H.264/H.265, VP8/VP9, MP4, WEBM), image (JPEG/PNG/BMP) and audio codecs. Tiled matrix up to 10×15. Pixel Shift and motion compensation for stable long-duration display.

Installation & Dimensions

• Wall mount: 400×400 mm, M8
• Dimensions (W×H×D): 1462.3 × 837.3 × 93.4/68.9 mm
• Weight: 29 kg
• Placement: Landscape or Portrait

Power & Environmental

• Power: 100–240 VAC, 50/60 Hz; consumption 98 W (EEI lot5); standby <0.5 W
• Operating temp/humidity: 0 ~ 40 °C; 20–80% RH
• Storage temp/humidity: -20 ~ 60 °C; 5–95% RH
• MTBF: 50,000 hours; altitude: 0–3000 m

Accessories (included)

• RS232 daisy-chain cable
• Philips logo
• AC switch cover, USB cover, screws
• AC power cord
• IR sensor cable
• Quick start guide
• Remote control + AAA batteries
• RS232 cable
• CRD32 Wi‑Fi and BT module

Compliance & Warranty
On‑screen display supports multiple languages. Regulatory approvals: CE, RoHS, CB. Warranty: 3 years.

Technical specifications (summary)

• Diagonal: 163.8 cm / 64.5 inch
• Resolution: 3840 × 2160 @ 60 Hz
• Brightness: 600 cd/m²; Haze 25%
• Contrast ratio: 1200:1 (typical)
• Pixel pitch: 0.372 × 0.372 mm
• RAM/Storage: 4 GB / 32 GB
• Speakers: 2 × 10 W RMS
• Ingress protection: IP5X
