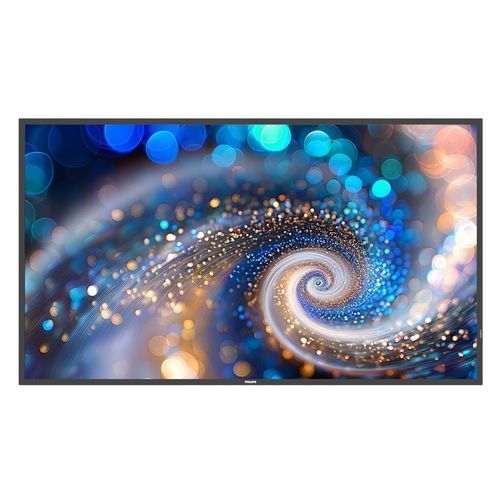

Wall-mounted display panel 50BDL2050A/00

indoorcommercialsmart

Product overview
The Philips Signage 2000 Series 50BDL2050A/00 is a 50-inch (49.5") UHD commercial digital signage display designed for continuous 16/7 operation. It runs Android 14, delivers 400 cd/m² brightness and offers straightforward integration for retail, corporate and public environments.

Connectivity
Line out: 3.5mm jack
Other connections: USB 3.0
Video output: N/A
Video input: HDMI 2.0, USB-C with 4.5W PD
External control: RJ45, IR 3.5 mm jack

Convenience
Tiled Matrix: Up to 3 x 3
Network controllable: RJ45
Energy-saving functions: ECO mode
Signal loop through: IR Loopthrough
Keyboard control: Lockable, Hidden
Remote control signal: Lockable
Placement: Landscape, Portrait

Accessories
Included accessories: Power cable 1.8M, Remote Control, External IR cable, AC Switch Cover, Logo Badge, USB Cover and screw
Optional accessories: CRD22 Wifi & Bluetooth module, CRD73 Philips ScreenShare license

Internal Player
GPU: ARM Mali G52 MC1
CPU: Quad core Cortex A73
Memory: 3GB RAM
Storage: 16GB

Dimensions
Product weight: 14.25 kg
Set Depth: 63.5 mm
Wall Mount: 400 mm x 400 mm, M6
Set Height: 649.0 mm
Set Width (inch): 44.43 inch
Set Width: 1128.4 mm
Set Height (inch): 25.55 inch
Set Depth (inch): 2.50 inch
Product weight (lb): 31.42 lb
Bezel width: 14.9 mm

Power
Consumption (Typical): 97 W
Energy Label Class: G
Standby power consumption: <0.5 W
Mains power: 100–240 V~, 50/60 Hz

Multimedia Applications
USB Playback Audio: AAC, HEAAC, MPEG
USB Playback Video: MPEG, H.264, H.263, H.265, AVI, MP4, VP8, VP9, MPEG4, WEBM
USB Playback Picture: JPEG, BMP, PNG

Miscellaneous
On-Screen Display Languages: English, French, German, Italian, Polish, Russian, Spanish, Turkish, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Swedish, Finnish, Norwegian, Dutch
Warranty: 3 year warranty
Regulatory approvals: CE, CB, RoHS

Operating conditions
MTBF: 30,000 hour
Humidity range (operation)[RH]: 10 ~ 90% RH
Temperature range (storage): -20 ~ 60 °C
Altitude: 0 ~ 3000 m
Temperature range (operation): 5 ~ 40 °C

Picture / Display
Operating system: Android 14
Response time (typical): 9.5 ms
Dynamic contrast ratio: 500,000:1
Aspect ratio: 16:9
Viewing angle (horizontal): 178 degree
Diagonal screen size (metric): 125.7 cm
Brightness: 400 cd/m²
Display colours: 1.07 Billion
Picture enhancement: 3/2 - 2/2 motion pull down, Dynamic contrast enhancement, Progressive scan, Motion adaptive de-interlacing
Diagonal screen size (inch): 49.5 inch
Contrast ratio (typical): 4000:1
Viewing angle (vertical): 178 degree
Panel resolution: 3840 x 2160
Pixel pitch: 0.2854 x 0.2854 mm
Haze: 1%
Optimum resolution: 3840 x 2160 @ 60 Hz
Panel technology: VA

Supported Display Resolution
Computer formats: 1920 x 1080, 60Hz; 1680 x 1050, 60Hz; 1600 x 1200, 60Hz; 1440 x 900, 60Hz; 1280 x 1024, 60Hz; 1280 x 800, 60Hz; 1280 x 720, 60Hz; 1024 x 768, 60/70/75Hz; 3840 x 2160, 60Hz
Video formats: 1080p 50/60Hz; 1080i 50/60Hz; 720p 50/60Hz; 2160p 50/60Hz

Technical specifications

• Model: 50BDL2050A/00
• Series: Signage 2000 Series (A-Line)
• Screen size: 50” (49.5 inch / 125.7 cm diagonal)
• Panel resolution: 3840 x 2160 (UHD)
• Brightness: 400 cd/m² (nits)
• Operating system: Android 14
• CPU: Quad core Cortex A73
• GPU: ARM Mali G52 MC1
• Memory: 3GB RAM
• Storage: 16GB
• Typical power consumption: 97 W
• Energy label class: G
• Product weight: 14.25 kg (31.42 lb)
• Set dimensions (W x H x D): 1128.4 mm x 649.0 mm x 63.5 mm (44.43" x 25.55" x 2.50")
• Bezel width: 14.9 mm
• Wall mount: 400 x 400 mm, M6
• Panel technology: VA
• Viewing angles: 178° / 178°
• Contrast ratio (typical): 4000:1
• Dynamic contrast ratio: 500,000:1
• Pixel pitch: 0.2854 x 0.2854 mm
• Picture processing: motion pull down, dynamic contrast enhancement, progressive scan, motion adaptive de-interlacing
• Warranty: 3 year warranty
