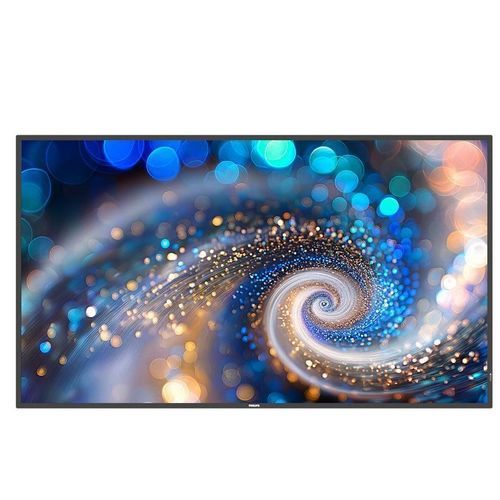

Wall-mounted display panel 55BDL2050A/00

indoorcommercialsmart

Product overview
The Philips Signage 2000 Series A-Line is a 16/7 professional digital signage display for straightforward integrations. Powered by Android 14, it provides UHD resolution on an ADS panel with 400 cd/m² brightness for clear content presentation.

Series
Signage 2000 Series / A-Line

Size
55″ (diagonal)

Available sizes

• 65″
• 55″
• 50″
• 43″

Connectivity
Video input: HDMI 2.0; USB-C with 4.5W PD
Video output: N/A
USB: USB 3.0
Audio: Line out 3.5 mm jack
External control: RJ45; IR 3.5 mm jack

Convenience
Energy-saving: ECO mode
Remote control signal: Lockable
Network control: RJ45
Tiled matrix: Up to 3 × 3
Keyboard control: Lockable, Hidden
Signal loop-through: IR loopthrough
Placement: Landscape, Portrait

Accessories
Optional: CRD22 Wi‑Fi & Bluetooth module; CRD73 Philips ScreenShare license
Included: Power cable 1.8 m; Remote control; External IR cable; AC switch cover; Logo badge; USB cover and screw

Internal Player
Memory: 3 GB RAM
Storage: 16 GB
CPU: Quad‑core Cortex‑A73
GPU: ARM Mali‑G52 MC1

Dimensions
Wall mount: 400 × 400 mm, M6
Set (W×H×D): 1241.8 × 712.6 × 63.6 mm
Weight: 17.2 kg
Bezel width: 13.9 mm

Power
Energy label class: G
Consumption (typical): 111 W
Standby: <0.5 W
Mains power: 100–240 VAC

Multimedia Applications
USB video playback: MPEG; H.264; H.263; H.265; AVI; MP4; VP8; VP9; MPEG4; WEBM
USB audio playback: AAC; HEAAC; MPEG
USB picture playback: JPEG; BMP; PNG

Miscellaneous
On-screen display languages: English; French; German; Italian; Polish; Turkish; Russian; Simplified Chinese; Spanish; Traditional Chinese; Arabic; Japanese; Danish; Swedish; Finnish; Norwegian; Dutch
Warranty: 3 years
Regulatory approvals: CE; CB; RoHS

Operating conditions
Storage temperature: -20 to 60 °C
Operating temperature: 5 to 40 °C
Operating humidity: 10 to 90% RH
MTBF: 30,000 hours
Altitude: 0 to 3000 m

Picture / Display
Diagonal screen size (metric): 138.7 cm
Diagonal screen size (inch): 54.6″
Panel resolution: 3840 × 2160 (UHD)
Panel technology: ADS
Brightness: 400 cd/m²
Pixel pitch: 0.315 × 0.315 mm
Colours: 1.07 billion
Optimum resolution: 3840 × 2160 @ 60 Hz
Viewing angle (H/V): 178° / 178°
Contrast ratio (typical): 1200:1
Dynamic contrast ratio: 500,000:1
Response time (typical): 8 ms
Haze: 1%

Technical specifications

• Model family: Signage 2000 Series (A-Line)
• Screen: 55″ (54.6″), 3840 × 2160 (UHD)
• Brightness: 400 cd/m²
• Panel tech: ADS, 1.07 billion colours
• OS / SoC: Android 14; Quad‑core Cortex‑A73; ARM Mali‑G52 MC1; 3 GB RAM; 16 GB storage
• Connectivity: HDMI 2.0; USB‑C (4.5W PD); USB 3.0; RJ45; 3.5 mm line out; IR jack
• Power: 100–240 VAC; Typical 111 W; Standby <0.5 W
• Dimensions (W×H×D): 1241.8 × 712.6 × 63.6 mm; Weight: 17.2 kg
• Mounting: VESA 400 × 400 mm (M6)
• Operating conditions: 5–40 °C; 10–90% RH; altitude 0–3000 m
• Warranty: 3 years
