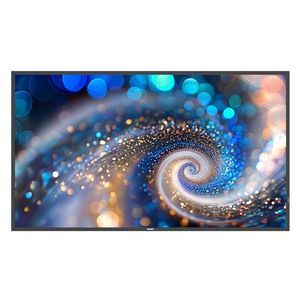

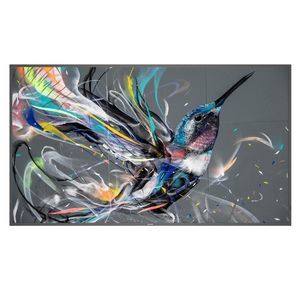

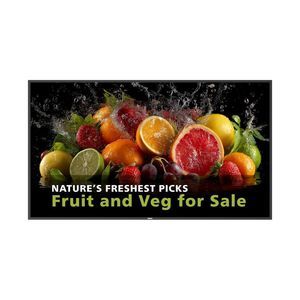

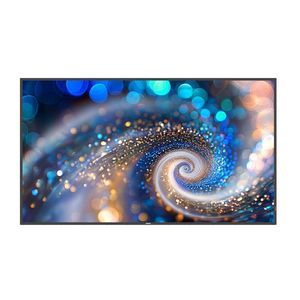

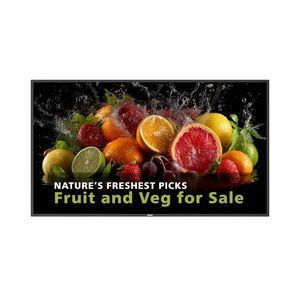

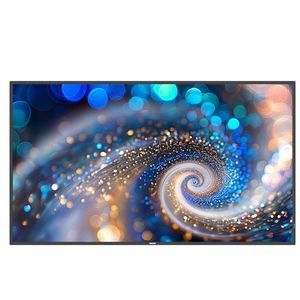

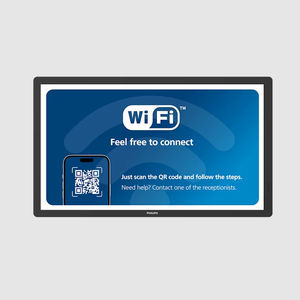

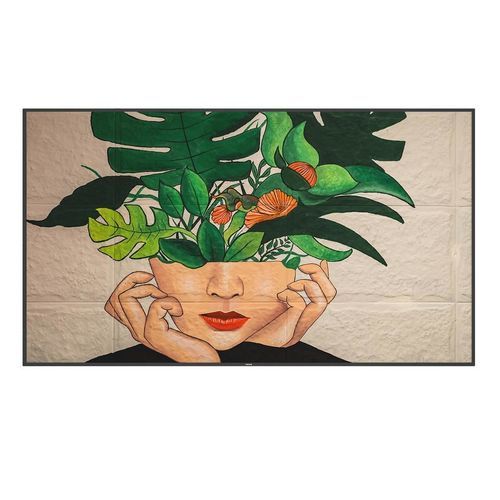

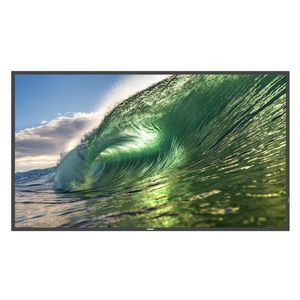

Wall-mounted display panel 98BDL4511D/00

indoorcommercialsmart

Product overview
Philips D-Line Professional 4K UHD signage display delivering accurate colours and high contrast for commercial applications. Supports multiple inputs and network/control options for integration in digital signage and AV installations.

Size

• 98” (97.5 inch / 247.6 cm diagonal)

Available sizes (other SKUs)

• 86”
• 75”
• 65”
• 55”
• 50”
• 43”
• 32”

Connectivity
Audio output: 3.5 mm jack
External control: RS232C 2.5 mm jack, RJ45, IR 3.5 mm jack
Audio input: 3.5 mm jack
Other connections: OPS slot
Video input: DisplayPort 1.2, DVI-I, USB 2.0, HDMI 2.0
Video output: DisplayPort 1.2, HDMI 2.0

Convenience
Energy-saving: Smart Power
Keyboard control: Hidden, lockable
Signal loop-through: RS232, DisplayPort, HDMI, IR loop-through
Placement: Landscape and Portrait modes supported
Screen-saving functions: Pixel Shift, Low Bright
Network controllable: RS232, RJ45

Accessories (included)
Quick start guide, RS232 daisy-chain cable, Philips logo, USB cover and screw x1, AC switch cover, AC power cord, wire clamper, IR sensor cable, remote control and AAA batteries, RS232 cable

Dimensions & Weight
Wall mount: 1000 x 400 mm
Set height: 1248.2 mm (49.14 inch)
Set width: 2193.2 mm (86.35 inch)
Set depth: 87.9 / 97.9 mm (3.46 / 3.85 inch)
Product weight: 90.52 kg (199.56 lb)
Bezel width: 16.0 mm

Sound
Built-in speakers: 2 x 10 W RMS

Power
Consumption (Max): 605 W
Consumption (Typical): 355 W
Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz
Standby power consumption: <0.5 W
Energy Label Class: G

Multimedia Applications
USB Playback Video: MPEG, H.264, H.263, H.265
USB Playback Picture: JPEG, BMP, PNG
USB Playback Audio: AAC, MPEG, HEAAC

Operating conditions
Temperature range (operation): 0 ~ 40 °C
Temperature range (storage): -20 ~ 60 °C
Humidity range (operation): 20–80% RH
Humidity range (storage): 5–95% RH
Altitude: 0 ~ 3000 m
MTBF: 50,000 hour

Picture / Display
Panel technology: IPS
Panel resolution: 3840 x 2160 (4K UHD)
Brightness: 500 cd/m²
Contrast ratio (typical): 1300:1
Dynamic contrast ratio: 500,000:1
Display colours: 1.07 Billion
Aspect ratio: 16:9
Response time (typical): 8 ms
Viewing angle (horizontal / vertical): 178° / 178°

Miscellaneous
On-screen display languages: Arabic, Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish
Warranty: 5-year warranty
Regulatory approvals: BSMI, CB, CCC, CE, CECP, EAC, EMF, ETL, FCC Class A, PSB, RoHS, VCCI

Supported display resolution (selected)
Computer formats include: 640 x 480 (60 Hz), 800 x 600 (60 Hz), 1024 x 768 (60 Hz), 1280 x 1024 (60 Hz), 1280 x 720 (60 Hz), 1440 x 900 (60 Hz), 1600 x 900 (60 Hz), 1680 x 1050 (60 Hz), 1920 x 1080 (60 Hz), 3840 x 2160 (30, 60 Hz)
Video formats include: 2160p (24, 30, 60 Hz), 1080p (50, 60 Hz), 720p (50, 60 Hz), 1080i (50, 60 Hz), 576i/p (50 Hz), 480i/p (60 Hz)

Technical specifications

• Model code / SKU (page): 98BDL4511D/00
• Series: Signage 4000 Series (D-Line)
• Diagonal: 97.5 inch / 247.6 cm
• Resolution: 3840 x 2160 (4K UHD)
• Panel type: IPS
• Brightness: 500 cd/m²
• Contrast ratio: 1300:1 (typical)
• Dynamic contrast ratio: 500,000:1
• Color depth: 1.07 Billion
• Inputs: DisplayPort 1.2, HDMI 2.0, DVI-I, USB 2.0
• Outputs: DisplayPort 1.2, HDMI 2.0
• Audio: 3.5 mm in/out, 2 x 10 W RMS speakers
• Network/control: RS232, RJ45, IR
• Power (Max/Typical): 605 W / 355 W; Mains 100–240 VAC
• Weight: 90.52 kg
• Warranty: 5 years
• Operating temp: 0–40 °C; Storage temp: -20–60 °C
