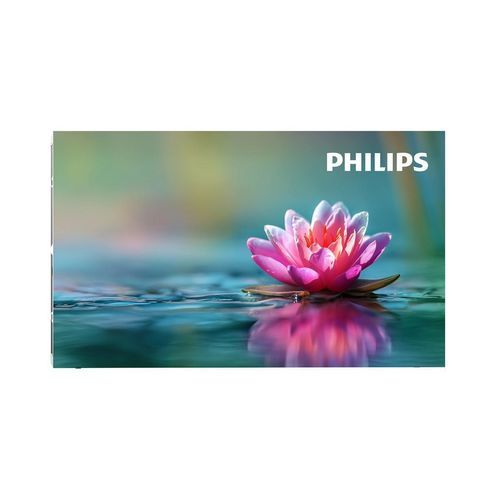

Modular LED display 27HDL3012IP/00

commercialindoorwall-mounted

Overview
The Philips Unite 3000 Series 27HDL3012IP/00 is a 27" indoor LED display cabinet designed for professional signage and visualization applications. It combines a compact 600 x 337.5 x 39.75 mm cabinet with a fine 1.25 mm pixel pitch and COB RGB LEDs for high pixel density and long lifetime.

General
Panel size: 27"; Cabinet area: 0.2052 m²; Net weight: 4.0±0.4 kg (net 4 kg / gross 5 kg); Receiving card: NovaStar.

Cabinet
Cabinet resolution (W x H): 480 x 270 mm; Cabinet size (W x H x D): 600 x 337.5 x 39.75 mm; Construction: Die-casting aluminium; Data connector: RJ45; Power connector: 3-pin locking Reunion.

Power
Input voltage: AC 100–240 V; Max power consumption: 55 W; Typical power consumption: 18 W; BTU/m2: <927.

Operating conditions
Working environment: Indoor; Operating temperature: -10 to 40 °C (storage: -20 to 60 °C); Humidity (operation/storage): 10%–90% RH.

Miscellaneous
Warranty: 3 years; Regulatory approvals: CE, ETL, FCC, RoHS, CB, WEEE, CA RoHS, CA65, Reach; Spare modules: 9HDL3093IM/00, 9HDL3012IM/00, 9HDL3015IM/00, 9HDL3118IM/00.

Picture/Display
Brightness: 600 nits; Brightness uniformity: ≥95%; Colour temperature default: 9300 K ±200 (adjustable 3000–10,000 K); Colour uniformity: ±0.003 Cx,Cy; Colour coordinates: x:0.285±0.003, y:0.293±0.003; Contrast ratio: 10,000:1; Viewing angle H/V: 160°; Frame frequency: 60 Hz; Refresh rate: 3840 Hz; Bit-depth: 13+3 (software).

Module
Module resolution: 120 x 135 pixels; Pixel pitch: 1.25 mm; Module size: 150 x 168.75 mm; LED type: COB (RGB Flip Chip); LED lifetime: 100,000 hours; Flatness: ≤0.1 mm.

Packaging Data
Package size (W x H x D): 750 x 410 x 140 mm; Gross weight: 5 kg; Net weight: 4 kg.

Technical specifications

• Product name: 27HDL3012IP/00
• Commercial series: Unite LED 3000 Series (L-Line)
• Panel size: 27"
• Cabinet size (mm): 600 x 337.5 x 39.75
• Cabinet resolution (mm): 480 x 270
• Cabinet area: 0.2052 m²
• Cabinet weight: 4.0±0.4 kg (net 4 kg, gross 5 kg)
• Cabinet construction: Die-casting aluminium
• Data connector: RJ45
• Power connector: 3-pin locking Reunion
• Power: AC 100–240 V, max 55 W, typical 18 W
• BTU/M2: <927
• Operating temperature: -10 to 40 °C (storage -20 to 60 °C)
• Operating humidity: 10%–90% RH (storage 10%–90% RH)
• Viewing angle: 160° H/V
• Brightness: 600 nits, Brightness Uniformity ≥95%
• Colour temperature default: 9300 K±200; adjustable 3000–10,000 K
• Colour uniformity: ±0.003 Cx,Cy; Colour coordinates x:0.285±0.003, y:0.293±0.003
• Contrast ratio: 10,000:1
• Frame frequency / refresh: 60 Hz frame / 3840 Hz refresh
• Bit-depth: 13+3 by software
• Module resolution: 120 x 135 pixels; pixel pitch 1.25 mm; module size 150 x 168.75 mm
• LED type / constitution: COB, RGB Flip Chip
• LED lifetime: 100,000 hours
• Flatness: ≤0.1 mm
• Receiving card brand: NovaStar
• Spare modules: 9HDL3093IM/00, 9HDL3012IM/00, 9HDL3015IM/00, 9HDL3118IM/00
• Packaging dimensions: 750 x 410 x 140 mm
• Warranty: 3 years
• Regulatory: CE, ETL, FCC, RoHS, CB, WEEE, CA RoHS, CA65, Reach
