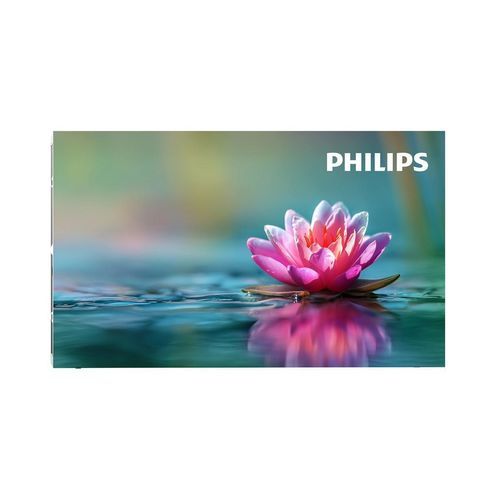

Modular LED display 27HDL3093IP/00

commercialindoorwall-mounted

Overview
The Philips Unite 3000 Series redefines back-to-basics LED performance. Easy on your bottom line and on the eye, bringing better picture quality, better colour uniformity and better refresh rates to truly stand out from the competition.

Size
27"

Cabinet
Weight (kg): 4.0±0.4 kg
Cabinet area (m2): 0.2052 m²
Cabinet Size (W x H x D in mm): 600 x 337.5 x 39.75 mm
Receiving card brand: NovaStar
Cabinet resolution (W x H): 640 x 360 mm
Power connector: 3 pin locking Reunion
Cabinet construction: Die-casting aluminium
Data connector: RJ45
Cabinet diagonal (inch): 27"

Power
Typical power cons. (W): 22 W
Max. power cons. AC (W): 65 W
Input voltage: AC 100–240 V
BTU/M2: <1095

Miscellaneous
Warranty: 3 years
Spare modules CTN: 9HDL3093IM/00 9HDL3012IM/00 9HDL3015IM/00 9HDL3118IM/00
Regulatory approvals: CE, ETL, FCC, RoHS, CB, WEEE, CA RoHS, CA65, Reach

Picture/Display
Colour temperature adjust range: 3000-10,000 K
Colour uniformity: ±0.003 Cx,Cy
Colour temperature default: 9300 K ±200
Colour coordinates: x:0.285±0.003, y:0.293±0.003
Brightness Uniformity: ≥95%
Brightness (nits): 600 nit
Viewing angle (°) H/V: 160°
Bit-depth (bit): 13+3 by software
Refresh rate (Hz): 3840 Hz
Contrast ratio: 10000:1
Frame frequency (Hz): 60 Hz
Calibration (brightness/colour): Colour

Operating conditions
Working environment (indoor/outdoor): Indoor
Temperature range (storage): -20 to 60° C
Humidity range (operation) [RH]: 10%–90% RH
Temperature range (operation): -10 to 40 °C
Humidity range (storage) [RH]: 10%–90% RH

Module
Module resolution (WxH pixels): 160 x 180
LED type: COB
Flatness: ≤0.1 mm
Pixel pitch (mm): 0.9375
LED lifetime (Hrs): 100,000 hours
Module size (W x H in mm): 150 x 168.75 mm
Pixel constitution: RGB Flip Chip

Packaging Data
Net weight: 4 kg
Package size (W x H x D mm): 750 x 410 x 140 mm
Gross weight: 5 kg

Technical specifications

• Model series: Unite LED 3000 Series (L-Line)
• Display diagonal: 27"
• Cabinet resolution: 640 x 360 mm
• Pixel pitch: 0.9375 mm
• Brightness: 600 nit
• Refresh rate: 3840 Hz
• Bit depth: 13+3 (software)
• Contrast ratio: 10000:1
• Typical power: 22 W / Max power AC: 65 W (AC 100–240 V)
• LED type: COB; Pixel constitution: RGB Flip Chip
• Module size: 150 x 168.75 mm; Module resolution: 160 x 180
• Cabinet size: 600 x 337.5 x 39.75 mm; Cabinet weight: 4.0±0.4 kg
• Operating temp: -10 to 40 °C; Storage temp: -20 to 60 °C; Humidity (operation/storage): 10%–90% RH
• Warranty: 3 years
• Regulatory: CE, ETL, FCC, RoHS, CB, WEEE, CA RoHS, CA65, Reach
