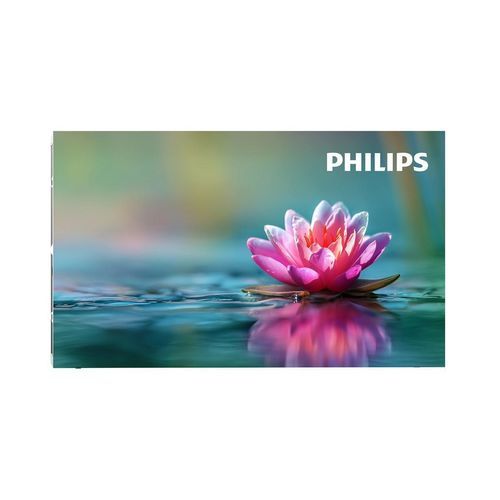

Modular LED display 27HDL3015IP/00

commercialindoorwall-mounted

Product summary
Philips Unite 3000 Series — professional indoor LED display cabinet designed for video wall applications. Delivers uniform colour, high refresh rates and a compact cabinet format for seamless tiling and reliable operation in indoor environments.

Size
27″

Cabinet
Power connector: 3 pin locking Reunion
Cabinet resolution (W x H): 384 x 216 mm
Cabinet diagonal (inch): 27″
Receiving card brand: NovaStar
Cabinet construction: Die-casting aluminium
Data connector: RJ45
Cabinet Size (W x H x D in mm): 600 x 337.5 x 39.75 mm
Cabinet area (m2): 0.2052 m²
Weight (kg): 4.0±0.4 kg

Power
Max. power cons. AC (W): 57 W
Input voltage: AC 100–240 V
Typical power cons. (W): 19 W
BTU/M2: <960

Operating conditions
Humidity range (storage) [RH]: 10%–90% RH
Temperature range (operation): -10 to 40 °C
Humidity range (operation) [RH]: 10%–90% RH
Temperature range (storage): -20 to 60 °C
Working environment (indoor/outdoor): Indoor

Miscellaneous
Regulatory approvals: CE, ETL, FCC, RoHS, CB, WEEE, CA RoHS, CA65, Reach
Warranty: 3 years
Spare modules CTN: 9HDL3093IM/00, 9HDL3012IM/00, 9HDL3015IM/00, 9HDL3118IM/00

Picture/Display
Frame frequency (Hz): 60 Hz
Contrast ratio: 10000:1
Refresh rate (Hz): 3840 Hz
Colour temperature default: 9300 K ±200
Colour uniformity: ±0.003 Cx,Cy
Colour temperature adjust range: 3000–10,000 K
Bit-depth (bit): 13+3 by software
Calibration (brightness/colour): Colour
Brightness Uniformity: ≥95%
Brightness (nits): 600 nit
Viewing angle (°) H/V: 160°
Colour coordinates: x:0.285±0.003, y:0.293±0.003

Module
Pixel pitch (mm): 1.5625
Pixel constitution: RGB Flip Chip
Flatness: ≤0.1 mm
Module resolution (WxH pixels): 96 x 108
LED lifetime (Hrs): 100,000 hours
LED type: COB
Module size (W x H in mm): 150 x 168.75 mm

Packaging Data
Gross weight: 5 kg
Net weight: 4 kg
Package size (W x H x D mm): 750 x 410 x 140 mm

Downloads / Software
No product PDF downloads specified on the page.

Specifications

• Power connector: 3 pin locking Reunion
• Cabinet resolution (W x H): 384 x 216 mm
• Cabinet diagonal (inch): 27″
• Receiving card brand: NovaStar
• Cabinet construction: Die-casting aluminium
• Data connector: RJ45
• Cabinet Size (W x H x D in mm): 600 x 337.5 x 39.75 mm
• Cabinet area (m2): 0.2052 m²
• Weight (kg): 4.0±0.4 kg
• Max. power cons. AC (W): 57 W
• Input voltage: AC 100–240 V
• Typical power cons. (W): 19 W
• BTU/M2: <960
• Humidity range (storage) [RH]: 10%–90% RH
• Temperature range (operation): -10 to 40 °C
• Humidity range (operation) [RH]: 10%–90% RH
• Temperature range (storage): -20 to 60 °C
• Working environment: Indoor
• Regulatory approvals: CE, ETL, FCC, RoHS, CB, WEEE, CA RoHS, CA65, Reach
• Warranty: 3 years
• Spare modules CTN: 9HDL3093IM/00, 9HDL3012IM/00, 9HDL3015IM/00, 9HDL3118IM/00
• Frame frequency (Hz): 60 Hz
• Contrast ratio: 10000:1
• Refresh rate (Hz): 3840 Hz
• Colour temperature default: 9300 K ±200
• Colour uniformity: ±0.003 Cx,Cy
• Colour temperature adjust range: 3000–10,000 K
• Bit-depth: 13+3 by software
• Calibration: Colour
• Brightness Uniformity: ≥95%
• Brightness (nits): 600 nit
• Viewing angle (°) H/V: 160°
• Colour coordinates: x:0.285±0.003, y:0.293±0.003
• Pixel pitch (mm): 1.5625
• Pixel constitution: RGB Flip Chip
• Flatness: ≤0.1 mm
• Module resolution (WxH): 96 x 108
• LED lifetime: 100,000 hours
• LED type: COB
• Module size (W x H in mm): 150 x 168.75 mm
• Gross weight: 5 kg
• Net weight: 4 kg
• Package size (W x H x D mm): 750 x 410 x 140 mm
