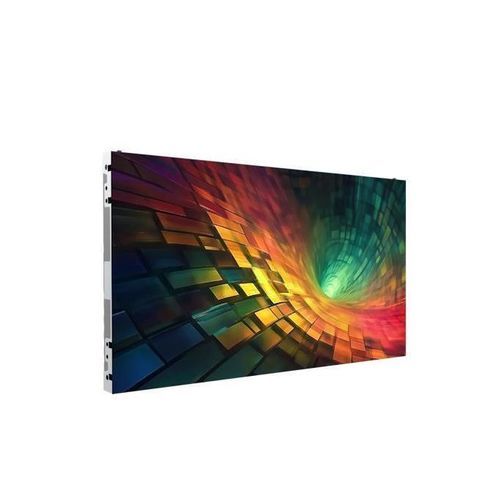

Modular LED display 27HDL6500IP/00

commercialindoorwall-mounted

Product overview
The Philips Unite 6000 Series 27HDL6500IP/00 is an indoor fine-pitch LED display cabinet intended for professional visual installations. It combines a 27.1" diagonal cabinet with a 0.78125 mm pixel pitch, delivering high-resolution imagery for control rooms, broadcast studios, corporate lobbies and other indoor applications requiring detailed visuals.

Key specifications

• Series: Unite LED 6000 Series (L-Line)
• Model: 27HDL6500IP/00
• Diagonal: 27.1"
• Cabinet size (W×H×D): 600 × 337.5 × 33.12 mm
• Cabinet area: 0.2025 m²
• Cabinet resolution: 768 × 432 pixels
• Pixel pitch: 0.78125 mm
• Module resolution: 192 × 216 pixels
• Brightness: 1000 nits
• Refresh rate: 3840 Hz
• Bit depth: 16 bit
• Viewing angle: >160° horizontal / 160° vertical
• Typical cabinet power: 36 W; Max cabinet power: 108 W
• Power consumption per m²: 533 W
• Input voltage: AC100–240 V
• LED lifetime (half brightness): 100,000 hours
• Weight per cabinet: 5.12 kg (gross 5.372 kg)

Cabinet & connectivity
Data connector: RJ45
Power connector: C13/C14
Receiving card: CA50E (NovaStar)
Receiving card quantity: 1
Cabinet construction: Die-cast aluminium
Power supply unit: HWT-403V8-2S-SS

Display performance
Colour temperature default: 6500 K ±500 K
Colour temperature adjust range: 4000~9500 K
Colour uniformity: ±0.012 Cx, Cy
Calibration: Brightness calibration available
Colour coordinates: 0.313, 0.325
Contrast ratio: 5000:1
Brightness uniformity: ≥95%
Frame frequency: 50–60 Hz
Refresh rate: 3840 Hz
Scan rate: 64
Bit-depth: 16 bit

Module
Module size (W×H×D): 150 × 168.75 × 2.0 mm
Module resolution: 192 × 216 pixels
Pixel constitution: 1R1G1B Flip Chip, COB LED type
Flatness with back shell: ≤0.25 mm
Included functions: Black screen power saving, Flash memory, Dynamic power saving
Conformal coating (UV-resistant): No

Operating conditions & certifications
Working environment: Indoor
Storage temperature: -20 to 50 °C
Operating temperature: -20 to 45 °C
Storage humidity: 10%–85% RH
Operating humidity: 10%–80% RH
Regulatory approvals: FCC SDOC Part 15 Class A; EN55032; EN55035; EN61000-3-2; EN61000-3-3; IEC/UL60950; IEC/UL62368; CE; RoHS
Warranty: 2 years

Packaging & weights
Gross weight: 5.372 kg
Net weight: 3.392 kg
Carton/paper weight: 1.95 kg
Plastic weight: 0.5 kg
Package size (W×H×D): 690 × 420 × 123 mm

Applications

• Control rooms and command centers
• Broadcast and production studios
• Corporate lobbies and meeting rooms
• Simulation and training environments
• Retail and high-resolution indoor signage

Ordering information
Model code: 27HDL6500IP/00
Series: Philips Unite 6000 Series (L-Line). For integration details, confirm receiving card and power supply compatibility with system integrator.
