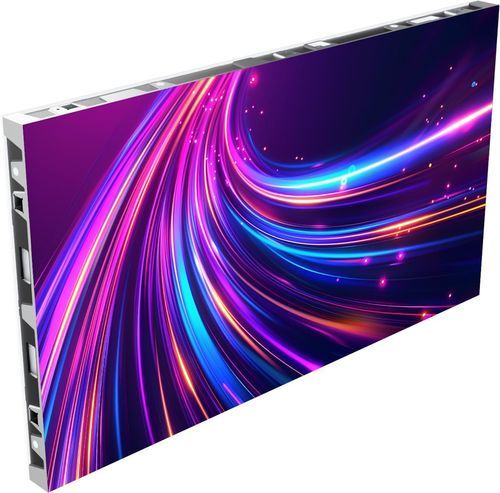

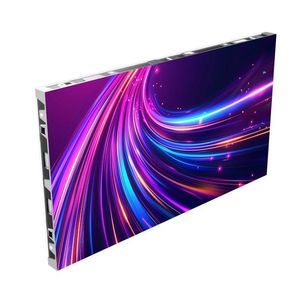

Wall-mounted LED panel 27HDL5178IP/00

modulardigitalcommercial

Overview
Your essential range of investment-friendly flip chip COB panels delivering on quality, resolution and reliability, as well as efficiency. With low power consumption for reduced cost of ownership and an easy-to-maintain flat matt surface.

Size
27"

Accessories
LAN cable (type/length): RJ45 75 cm / RJ45 15 cm
Screws (type/length mm): Hex M6, 22 mm
QSG (Quick Start Guide): QSG printed on carton

Cabinet
Cabinet Size (W x H x D in mm): 600 x 337.5 x 33.6
Receiving card quantity: 2 pcs
Cabinet pixels (Dot): 1,638,400
Receiving card brand: Novastar A10s Pro x 2
Cabinet diagonal (inch): 27.1"
Cabinet resolution (W x H): 768 x 432 mm
Power connector: 3-pin connector
Weight (kg): 4.7 ± 0.2
Cabinet area (m2): 0.2052
Cabinet construction: Die Cast Aluminium
Data connector: RJ45

Power
Cabinet Max Power consumption (W) (BC): < 75
Max cabinets power daisy chain: 16
Input voltage: AC100~240 V
Cabinet Max Power consumption (W) (AC): < 59
BTU/M2 (AC): 1036
Cabinet Typical Power consumption (W) (AC): < 30
Power consumption/M2 (W) (BC): 371.5
Power consumption/M2 (W) (AC): 303.75
BTU/M2 (BC): 1267
Black screen power cons. (W): < 20

Miscellaneous
Regulatory approvals:

• CCC
• CE
• ETL
• FCC
• SASO
• UKCA
• RoHS

Warranty: 36 months

Operating conditions
Working environment (indoor/outdoor): Indoor
Temperature range (storage): -40 ~ 60 °C
Humidity range (storage) [RH]: 10%–70% RH
Temperature range (operation): -10 ~ 45 °C
Humidity range (operation) [RH]: 10%–90% RH

Picture/Display
Bit-depth (bit): 13
Calibration (brightness/colour): Colour and brightness
Colour temperature adjust range: 3000–10000
Viewing angle (horizontal): 160 degree
Refresh rate (Hz): 3840 Hz
Frame frequency (Hz): 50–60
Viewing angle (°) H/V: 160°
Brightness (nits): 600 nit
Brightness Uniformity: >=97%
Contrast ratio (typical): 5000:1
Viewing angle (vertical): 160 degree
Colour temperature default: 6500 ± 500
Colour temperature (K) adjust range (by software): 3000–10000

Module
LED type: COB
LED lifetime (Hrs): 100,000
Module size (W x H in mm): 150 x 168.75
Pixel constitution: 1R1G1B Flip Chip
Pixel pitch (mm): 0.78125
Weight (kg): 0.15
LED Pole type: Common Cathode
Black screen power saving: Yes
Module resolution (WxH pixels): 192 x 216

Packaging Data
Net Weight (Product excluding accessories and packaging in kg): < 4.8 kg
Packing Total weight Cardboard/paper (in grams): 1100 ± 100
Packing Total weight Plastics (LDPE/EPE/HDPE/PVC/ in grams): 400 ± 100
Package size (W x H x D mm): 822 x 461 x 99
Gross weight (full product, incl. accessories and packaging in kg): 6.3 ± 0.2

Caractéristiques / spécifications techniques

• Product code / title: 27HDL5178IP/00
• Series / line: Unite LED 5000 Series / L-Line
• Size: 27"
• Cabinet dimensions (W x H x D): 600 x 337.5 x 33.6 mm
• Cabinet diagonal: 27.1"
• Cabinet resolution (W x H): 768 x 432 mm
• Cabinet pixels (dot): 1,638,400
• Cabinet area: 0.2052 m2
• Cabinet construction: Die Cast Aluminium
• Weight (cabinet): 4.7 ± 0.2 kg
• Net product weight (excl. accessories & packaging): < 4.8 kg
• Gross weight (incl. packaging & accessories): 6.3 ± 0.2 kg
• Power connector: 3-pin connector
• Input voltage: AC100~240 V
• Cabinet max power (BC): < 75 W
• Cabinet max power (AC): < 59 W
• Typical power (AC): < 30 W
• Power consumption/M2 (BC): 371.5 W
• Power consumption/M2 (AC): 303.75 W
• Max cabinets daisy chain power: 16
• BTU/M2 (AC): 1036
• BTU/M2 (BC): 1267
• Black screen power consumption: < 20 W
• Receiving card quantity: 2 pcs (Novastar A10s Pro x 2)
• Data connector: RJ45
• LAN cable (included): RJ45 75 cm / RJ45 15 cm
• Screws (included): Hex M6, 22 mm
• QSG: Quick Start Guide printed on carton
• Module size (W x H): 150 x 168.75 mm
• Pixel pitch: 0.78125 mm
• Module resolution (WxH): 192 x 216 pixels
• Pixel constitution: 1R1G1B Flip Chip
• LED type: COB (Flip Chip)
• LED lifetime: 100,000 hrs
• LED Pole type: Common Cathode
• Black screen power saving: Yes
• Bit-depth: 13 bit
• Refresh rate: 3840 Hz
• Frame frequency: 50–60 Hz
• Viewing angle (H/V): 160° / 160°
• Brightness (typical): 600 nits
• Brightness Uniformity: >= 97%
• Contrast ratio (typical): 5000:1
• Colour temperature default: 6500 ± 500 K
• Colour temperature adjust range (software): 3000–10000 K
• Calibration: Colour and brightness
• Operating temperature: -10 ~ 45 °C
• Storage temperature: -40 ~ 60 °C
• Operating humidity: 10%–90% RH
• Storage humidity: 10%–70% RH
• Regulatory approvals: CCC, CE, ETL, FCC, SASO, UKCA, RoHS
• Warranty: 36 months
