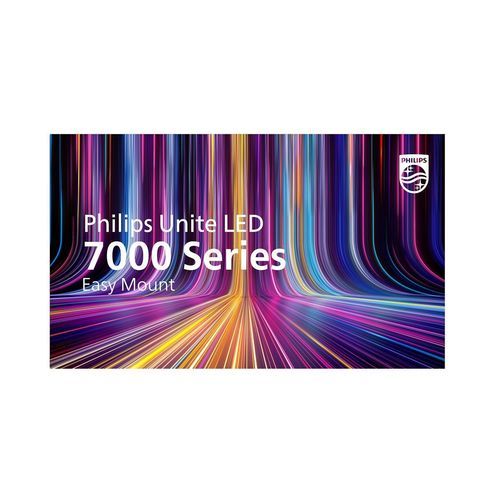

Large format LED display 110HDL7012IA/00

commercialindoorwall-mounted

Product overview
Seamless 110" integrated 2x2 LED videowall designed to replace an FHD 2x2 LCD videowall without configuration. Ships in a single box with ADA-compliant wall mount; supports existing 400 x 400 VESA mounts. Typical installation time under one hour.

Accessories
Included: 2 spare LED display modules, 2 x AAA batteries, quick start guide. Remote: IR receiver and IR remote control. Cables: 3 x HDMI 200 cm, 1 x HDMI 300 cm, 1 x USB 300 cm. Power: 4 x power cables, length 300 cm. Tools: 2 anti-static gloves, 1 manual suction tool. Wall mount: 400 x 400 VESA (ADA compliant).

Cabinet
Cabinet diagonal: 110". Cabinet pixels: 518,400. Cabinet size: 1209.6 x 680.4 x 28 mm. Cabinet resolution: 960 x 540 pixels. Power connector: C14. Cabinet weight: ≤18.5 kg. Cabinet area: 0.8226 m2. Data connector: HDMI. Construction: die-cast aluminium.

Power
Input voltage: AC 100–240 V. Max power consumption (display): <1240 W. Average power consumption (display): <614.8 W. Cabinet max/typical power consumption: <310 W / <154.7 W. Black-screen power consumption: <45 W. BTU/m2: 625.

110" Display
Diagonal screen size: 110". Total weight: 74 kg. Dimensions (W x H): 2433.2 x 1374.8 mm (95.8 x 54.1 in). Depth with provided mount: 71 mm (2.8 in). Cabinet array: 2 x 2. Pixel pitch: 1.26 mm. Resolution: 1920 x 1080.

Picture / Display
Refresh rate: 3840 Hz. Frame frequency: 60 Hz. Contrast ratio (typical): 7000:1. Colour temperature: 6500 K ± 500. Brightness: 600 nits. Bit depth: 16 bit. Brightness uniformity: ≥97%. Viewing angle H/V: 160° / 160°.

Operating conditions
Intended use: indoor. Operating temperature: -10 to 45 °C. Storage temperature: -20 to 60 °C. Humidity (operation/storage): 10%–90% RH.

Module
Module size: 302.4 x 170.1 mm. Pixel pitch: 1.26 mm. Pixel constitution: 1R1G1B. Module weight: 0.35 kg. LED lifetime: 100,000 hours. Module resolution: 240 x 135 pixels. LED type: SMD1010 (common cathode). Black-screen power saving: yes.

Technical specifications

• Product series: Unite LED 7000 Series (AIO)
• Model code: 110HDL7012IA/00
• Form factor: 110" integrated 2x2 LED videowall (AIO)
• Cabinet construction: die-cast aluminium; dimensions 1209.6 x 680.4 x 28 mm
• Overall resolution: 1920 x 1080 (FHD)
• Pixel pitch: 1.26 mm; pixel constitution 1R1G1B; module resolution 240 x 135
• Brightness (typical): 600 nits; uniformity ≥97%
• Colour temperature: 6500 K ± 500
• Refresh rate: 3840 Hz; frame frequency 60 Hz; bit depth 16 bit
• Power: AC 100–240 V; cabinet typical/max power <154.7 W / <310 W; black screen <45 W
• Connectors: HDMI data; C14 power
• Included accessories: spare modules, HDMI/USB and power cables, IR remote
• Mounting: shipped with ADA-compliant wall mount; supports 400 x 400 VESA
• Operating conditions: indoor; operation -10–45 °C; storage -20–60 °C; humidity 10–90% RH
• Module LED lifetime: 100,000 hours; LED type SMD1010 common cathode
• Weight: cabinet ≤18.5 kg; complete display 74 kg
