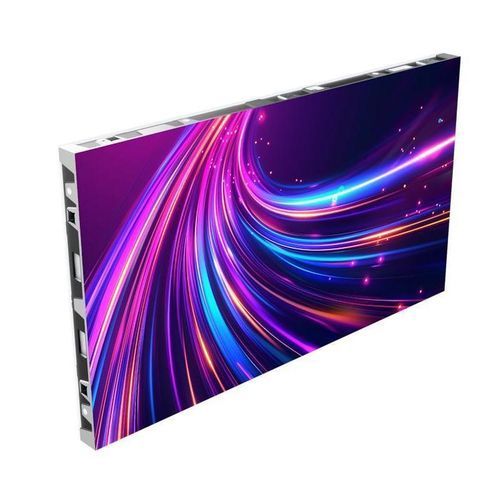

Wall LED panel 27HDL5193IP/00

modulardigitalcommercial

Product overview

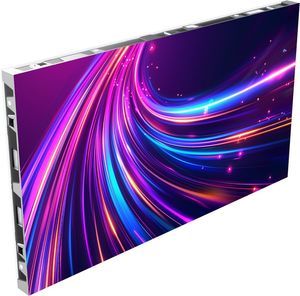

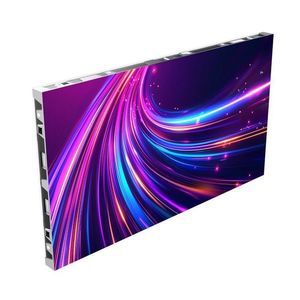

The Philips Unite 5000 Series 27HDL5193IP/00 is a 27" indoor COB LED panel designed for high-resolution video walls and professional displays. It combines compact cabinet dimensions, fine pixel pitch and high refresh rate for stable image reproduction in control rooms, studios and digital signage installations.

Size
27" (cabinet diagonal 27.1"). Cabinet size: 600 x 337.5 x 33.6 mm.

Accessories
LAN cable (RJ45): 75 cm / 15 cm
Mounting screws: Hex M6, 22 mm
Quick Start Guide: printed on carton

Cabinet
Receiving card: A10s Pro × 2
Cabinet resolution (W×H): 640 × 360 mm
Cabinet pixels (dots): 1,137,777
Receiving card brand: Novastar
Power connector: 3-pin connector
Weight: 4.7 ± 0.2 kg
Construction: Die cast
Data connector: RJ45

Power
Input voltage: AC 100–240 V
Typical cabinet power (AC): <45 W
Max cabinet power (AC): <64 W
Max cabinet power (BC): <86 W
Max cabinets in daisy chain: 16
Power consumption/M2 (AC): 314 W
Power consumption/M2 (BC): 421 W
Black screen power (W): <38

Operating conditions
Working environment: Indoor
Operating temperature: -10–45 °C
Storage temperature: -40–60 °C
Operating humidity: 10%–90% RH
Storage humidity: 10%–70% RH

Picture/Display
Pixel pitch: 0.9375 mm
Brightness: 600 nits (uniformity ≥97%)
Refresh rate: 3840 Hz
Frame frequency: 50–60 Hz
Bit depth: 13 bit
Contrast ratio (typical): 5000:1
Colour temperature: 3000–10000 K (default 6500 ± 500)
Viewing angle (H/V): 160°/160°

Module
LED type: COB (1R1G1B Flip Chip)
Module size: 150 × 168.75 mm
Module resolution: 160 × 180 pixels
Rated LED lifetime: 100,000 hours
Module weight: 0.15 kg
Black screen power saving: Yes

Packaging Data
Package size: 822 × 461 × 99 mm
Net weight (excl. accessories & packaging): <4.8 kg
Gross weight (incl. accessories & packaging): 6.3 ± 0.2 kg
Packing cardboard weight: 1100 ± 100 g
Packing plastics weight: 400 ± 100 g

Technical specifications

• Model family: Unite LED 5000 Series (L-Line)
• Panel size: 27" (cabinet diagonal 27.1")
• Pixel pitch: 0.9375 mm
• Cabinet resolution: 640 × 360 mm
• Brightness: 600 nits (uniformity ≥97%)
• Refresh rate: 3840 Hz
• Contrast ratio (typical): 5000:1
• Colour temperature: 3000–10000 K (adjustable), default 6500 ± 500
• Bit depth: 13 bit
• LED type & pixel constitution: COB, 1R1G1B Flip Chip
• Module size: 150 × 168.75 mm; module resolution 160 × 180 px
• Rated LED lifetime: 100,000 hours
• Typical cabinet weight: ~4.7 kg (±0.2)
• Power input: AC100–240 V; typical cabinet power (AC) <45 W; max (AC) <64 W
• Daisy chain up to 16 cabinets
• Operating temperature: -10–45 °C; storage temperature: -40–60 °C
• Humidity (operation): 10%–90% RH; (storage): 10%–70% RH
• Regulatory approvals: CCC, CE, ETL, FCC, SASO, UKCA, RoHS
• Warranty: 36 months
