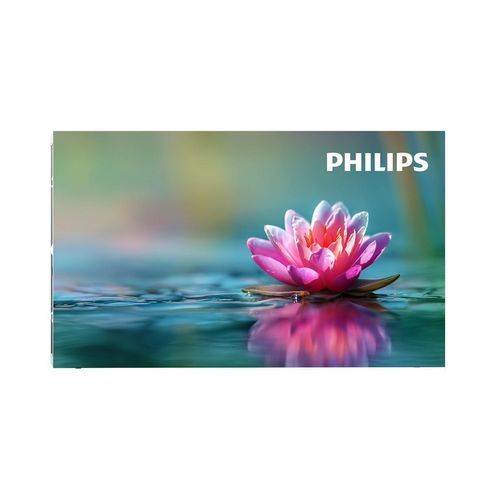

Modular LED display 27HDL3118IP/00

commercialindoorwall-mounted

Product overview
Philips Unite 3000 Series — 27" indoor LED display cabinet model 27HDL3118IP/00, designed for video-wall and professional signage applications. Key characteristics: 1.875 mm pixel pitch, COB LED, 1000 nits brightness, high refresh rate.

Size & cabinet
Receiving card brand: NovaStar
Power connector: 3 pin locking Reunion
Cabinet resolution (W x H): 320 x 180 mm
Cabinet size (W x H x D): 600 x 337.5 x 39.75 mm
Data connector: RJ45
Cabinet construction: Die-casting aluminium
Cabinet area: 0.2052 m²
Weight: 4.0±0.4 kg
Cabinet diagonal: 27"

Power
Typical power consumption: 30 W
Max. power consumption AC: 92 W
BTU/M2: <1550
Input voltage: AC 100–240 V

Operating conditions
Working environment: Indoor
Storage temperature range: -20 to 60 °C
Operating temperature range: -10 to 40 °C
Humidity range (operation/storage): 10%–90% RH

Miscellaneous
Regulatory approvals: CE, ETL, FCC, RoHS, CB, WEEE, CA RoHS, CA65, Reach
Warranty: 3 years
Spare modules: 9HDL3093IM/00, 9HDL3012IM/00, 9HDL3015IM/00, 9HDL3118IM/00

Picture/Display
Frame frequency: 60 Hz
Refresh rate: 7680 Hz
Contrast ratio: 10000:1
Calibration: Colour
Colour temperature adjust range: 3000–10,000 K
Bit-depth: 16 bit
Colour uniformity: ±0.003 Cx,Cy
Colour temperature default: 9300 K ±200
Colour coordinates: x:0.285±0.003, y:0.293±0.003
Brightness uniformity: ≥95%
Brightness: 1000 nit
Viewing angle H/V: 160°

Module
Module flatness: ≤0.1 mm
LED lifetime: 100,000 hours
Module size (W x H): 150 x 168.75 mm
LED type: COB
Module resolution: 80 x 90 pixels
Pixel constitution: RGB Flip Chip
Pixel pitch: 1.875 mm

Packaging data
Net weight: 4 kg
Package size (W x H x D): 750 x 410 x 140 mm
Gross weight: 5 kg

Technical specifications

• Model: Unite LED 3000 Series (L-Line)
• Size: 27”
• Cabinet receiving card brand: NovaStar
• Power connector: 3 pin locking Reunion
• Cabinet resolution (W x H): 320 x 180 mm
• Cabinet size (W x H x D): 600 x 337.5 x 39.75 mm
• Data connector: RJ45
• Cabinet construction: Die-casting aluminium
• Cabinet area: 0.2052 m²
• Cabinet weight: 4.0±0.4 kg
• Cabinet diagonal: 27"
• Typical power consumption: 30 W
• Max power consumption AC: 92 W
• BTU/M2: <1550
• Input voltage: AC 100–240 V
• Working environment: Indoor
• Storage temperature range: -20 to 60 °C
• Operating temperature range: -10 to 40 °C
• Humidity range (operation/storage): 10%–90% RH
• Regulatory approvals: CE, ETL, FCC, RoHS, CB, WEEE, CA RoHS, CA65, Reach
• Warranty: 3 years
• Spare modules: 9HDL3093IM/00, 9HDL3012IM/00, 9HDL3015IM/00, 9HDL3118IM/00
• Frame frequency: 60 Hz
• Contrast ratio: 10000:1
• Colour temperature adjust range: 3000–10,000 K
• Bit-depth: 16 bit
• Colour uniformity: ±0.003 Cx,Cy
• Default colour temperature: 9300 K ±200
• Brightness uniformity: ≥95%
• Brightness: 1000 nit
• Viewing angle H/V: 160°
• Refresh rate: 7680 Hz
• Module flatness: ≤0.1 mm
• LED lifetime: 100,000 hours
• Module size: 150 x 168.75 mm
• LED type: COB
• Module resolution: 80 x 90 pixels
• Pixel constitution: RGB Flip Chip
• Pixel pitch: 1.875 mm
• Net weight (packaging): 4 kg
• Package size: 750 x 410 x 140 mm
• Gross weight (packaging): 5 kg
