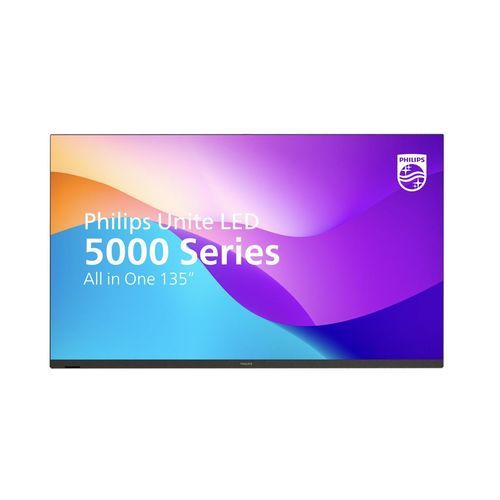

Large format LED display 135HDL5015IA/00

commercialindoorwall-mounted

Overview
Professional indoor LED display designed for meeting rooms and auditoriums. Integrated all-in-one (AIO) cabinet solution delivered pre-installed and pre-configured to simplify installation and commissioning. Optimised for uniform colour, deep contrast and long operational lifetime.

Series
5000 Series / AIO

Size
135″

Connectivity
External control: RS232C 2.5 mm jack; RJ45; RJ45 to LED screen; IR 3.5 mm jack
Audio input: 3.5 mm mini jack
Video output: DisplayPort 1.4
Video input: DVI-I; DisplayPort 1.4; HDMI 2.0; USB 3.0; USB-C
Audio out: 3.5 mm headphone/line-out jack

Accessories

• Remote control and AAA batteries
• RS232 cable
• Power cord
• Quick start guide
• RS232 daisy cable
• IR sensor cable
• USB cover and screws
• Cable clips
• Key pad and IR receiver board
• Cable for key pad and IR receiver board
• Speaker set
• Wall mount

Wi‑Fi module
CRD22 Wi‑Fi and Bluetooth USB module, includes 2 antennas

Internal Player
Storage: 32 GB eMMc
GPU: ARM Mali-T860 MP4
Memory: 4 GB RAM
CPU: 2 x A72 + 4 x A53

Cabinet
Receiving card spec.: A5s plus
Cabinet size (inches): 135″
Cabinet pixels (dot): 414,720
Receiving card brand: Novastar
Cabinet resolution (W x H): 384 x 1080
Power connector: C40
Cabinet thickness (mm): 70.5
Weight (kg): 29
Cabinet area (m2): 1.0125
Cabinet construction: Extruded aluminium
Data connector: RJ45

Power
Mains power: AC 100~240 V
Typical power consumption: 816 W
Max power consumption: 2,260 W

Regulatory & Warranty
Approvals: CE; FCC SDOC Part 15 Class A; EMC: EN55032 / EN55035 / EN61000-3-2 / EN61000-3-3; IEC/UL62368; ETL
Warranty: 2 years

Operating conditions
Operating temperature: 0 ~ 40 °C
Storage temperature: -40 ~ 60 °C
Operating humidity: ≤90% RH
Storage humidity: ≤93% RH

Picture / Display
Colour temperature range: 2000 ~ 10000 K
Aspect ratio: 16:9
Viewing angle: 160° horizontal / 160° vertical
Refresh rate: 3840 Hz
Frame frequency: 50/60 Hz
Scan rate: 1/48
Brightness before calibration: 900 cd/m²; after calibration: 700 cd/m²
Brightness uniformity: ≥95%
Contrast ratio (typical): 8000:1

Module
LED type: SMD 1212
LED lifetime: 100,000 hrs
Module size (W x H mm): 300 x 168.75
Pixel pitch: 1.5625 mm
Pixel constitution: 1R1G1B
Module resolution (W x H pixels): 192 x 108

Packaging Data
Packaging dimensions (mm): 1830 x 1050 x 780
Gross weight (kg): 277

Technical specifications

• Model: Unite LED 5000 Series (AIO)
• Product code: 135HDL5015IA/00
• Screen size: 135″
• Cabinet resolution: 384 x 1080 (W x H)
• Cabinet pixels (dot): 414,720
• Pixel pitch: 1.5625 mm
• Module resolution: 192 x 108 pixels
• LED type: SMD 1212; lifetime 100,000 hrs
• Brightness: 900 cd/m² (before calibration); 700 cd/m² (after)
• Contrast ratio: 8000:1
• Refresh rate: 3840 Hz; Frame frequency: 50/60 Hz
• Viewing angle: 160° H / 160° V
• Power consumption: typical 816 W; max 2,260 W
• Mains power: AC 100~240 V
• Cabinet area: 1.0125 m²; cabinet weight: 29 kg
• Cabinet construction: extruded aluminium
• Receiving card: Novastar A5s plus
• Internal player: 32 GB eMMc, 4 GB RAM, ARM Mali-T860 MP4, CPU 2 x A72 + 4 x A53
• Connectivity: DVI-I, DisplayPort 1.4, HDMI 2.0, USB 3.0, USB-C, RJ45, RS232, IR
• Included accessories: remote, RS232 cable, power cord, quick start guide, IR sensor cable, speaker set, wall mount, etc.
• Operating range: 0~40 °C (operation); storage -40~60 °C
• Humidity: ≤90% (operation); ≤93% (storage)
• Regulatory approvals: CE, FCC, EN55032, EN55035, IEC/UL62368, ETL
• Warranty: 2 years
