Wall-mounted LED panel 27HDL5115IP/00

modulardigitalcommercial

Product overview

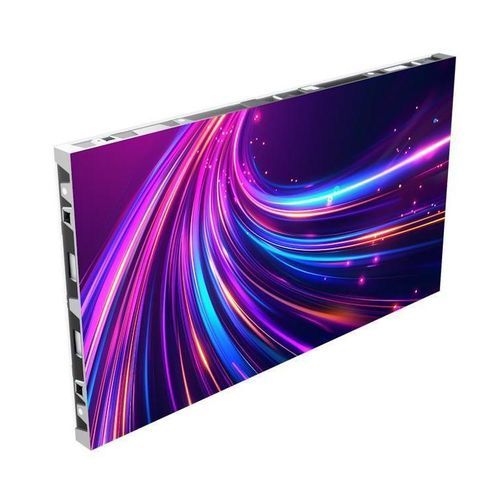

Indoor flip-chip COB LED cabinet panel from the Unite LED 5000 Series (L-Line), model 27HDL5115IP/00. Designed for indoor LED walls and displays where fine pixel pitch, compact cabinet size and low power draw are required.

Size
27" (cabinet diagonal 27.1")

Accessories
Screws: Hex M6, 22 mm
Quick Start Guide: printed
LAN cables: RJ45 75 cm and RJ45 15 cm

Cabinet
Dimensions (W×H×D): 600 × 337.5 × 33.6 mm
Receiving card: Novastar A8S-N
Cabinet resolution: 384 × 216 (W×H)
Cabinet pixels: 82,944 dots
Cabinet area: 0.2052 m²
Weight (cabinet): 4.7 ± 0.2 kg
Construction: die-cast
Data connector: RJ45
Power connector: 3-pin connector

Power
Input voltage: AC 100–240 V
Typical cabinet power (AC): < 40 W
Max cabinet power (AC): 397 W
Cabinet max power (BC): < 81 W
Cabinet max power (AC): < 60 W
Black-screen power: < 22 W
Max cabinets in daisy chain (power): 16
BTU/m² (AC): 982; (BC): 1326

Certifications & warranty
Regulatory approvals: CE, UKCA, FCC, ETL, RoHS, CCC, SASO
Warranty: 36 months

Operating conditions
Environment: indoor use
Storage temperature: -40 – 60 °C
Operating temperature: -10 – 45 °C
Storage humidity: 10%–70% RH
Operating humidity: 10%–90% RH

Picture / Display
Pixel pitch: 1.5625 mm
Brightness: 600 nits
Refresh rate: 3840 Hz
Frame frequency: 50–60 Hz
Bit depth: 13 bit
Viewing angle (H/V): 160° / 160°
Brightness uniformity: ≥97%
Default colour temperature: 6500K ± 500 (adjustable 3000–10000 K)
Contrast ratio (typical): 5000:1

Module
LED type: COB (flip chip)
Module size: 150 × 168.75 mm (W×H)
Module resolution: 96 × 108 (W×H)
Pixel constitution: 1R1G1B flip chip
LED lifetime: 100,000 hrs
Module weight: 0.137 kg
LED polarity: common anode
Black-screen power saving: yes

Packaging data
Package dimensions: 822 × 461 × 99 mm (W×H×D)
Net weight (excl. packaging): < 4.8 kg
Gross weight (with packaging): 6.3 ± 0.2 kg
Packing materials weight: Cardboard ~1100 ± 100 g; Plastics ~400 ± 100 g

Technical specifications

• Series: Unite LED 5000 Series (L-Line)
• Model code: 27HDL5115IP/00
• Cabinet size: 600 × 337.5 × 33.6 mm
• Cabinet diagonal: 27.1"
• Pixel pitch: 1.5625 mm
• Cabinet resolution: 384 × 216
• Cabinet pixels: 82,944
• Module size: 150 × 168.75 mm
• Module resolution: 96 × 108
• LED type: COB (flip chip)
• Pixel constitution: 1R1G1B flip chip
• Brightness: 600 nits
• Refresh rate: 3840 Hz
• Frame frequency: 50–60 Hz
• Bit depth: 13 bit
• Colour temp default: 6500K ± 500 (adjustable 3000–10000 K)
• Contrast ratio: 5000:1
• Brightness uniformity: ≥97%
• LED lifetime: 100,000 hrs
• Weight (cabinet): 4.7 ± 0.2 kg
• Cabinet area: 0.2052 m²
• Input voltage: AC 100–240 V
• Typical power consumption (AC): <40 W
• Max cabinets power daisy chain: 16
• Data connector: RJ45
• Receiving card: Novastar A8S-N
• Construction: die-cast
• Regulatory approvals: CE, UKCA, FCC, ETL, RoHS, CCC, SASO
• Warranty: 36 months
