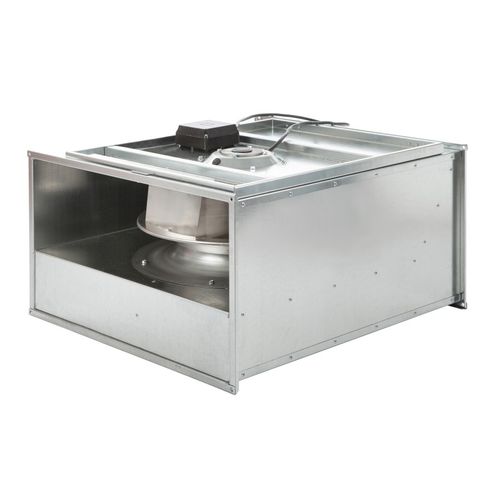

Box fan IRB SERIESductcommercialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- box
- Installation
- duct
- Sector
- commercial
- Location
- indoor
- Material
- steel, aluminum
- Color
- silver-colored
- Air flow
Max.: 10,000 m³/h
(353,146.7 ft³/h)Min.: 100 m³/h
(3,531.5 ft³/h)- Height
Max.: 565 mm
(22 in)Min.: 200 mm
(8 in)- Width
Max.: 545 mm
(21 in)Min.: 190 mm
(7 in)- Length
Max.: 980 mm
(39 in)Min.: 375 mm
(15 in)
Description
-Extraction or insufflation
-Operation in all positions
-Easy to clean turbine
-Low height
Application
Direct insertion into a rectangular network.
Operation in all positions.
Construction
-Box made of galvanized Z275 steel sheet.
-Motor turbine fixed on removable cover.
-Reaction turbine made of aluminum sheet, mounted in direct coupling on the engine shaft.
-Remote terminal box.
1-speed single-phase AC motor 230 V, 50 Hz, variable voltage.
IP44 motor, class F, with integrated thermal protection not connected: models IRB 2-180, IRB 2-200, IRB 4-225, IRB 4-315 A.
IP54 motor, class F, with integrated thermal protection not connected: for all other models.
