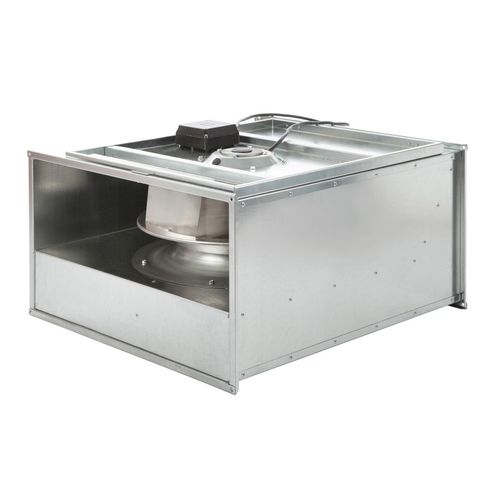

Box fan IRT SERIESductcommercialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- box
- Installation
- duct
- Sector
- commercial
- Location
- indoor
- Material
- steel, aluminum
- Color
- silver-colored
- Air flow
Max.: 10,000 m³/h
(353,146.7 ft³/h)Min.: 100 m³/h
(3,531.5 ft³/h)- Weight
Max.: 97 kg
(213.85 lb)Min.: 37 kg
(81.57 lb)- Height
Max.: 595 mm
(23 in)Min.: 200 mm
(8 in)- Width
Max.: 545 mm
(21 in)Min.: 190 mm
(7 in)- Length
Max.: 980 mm
(39 in)Min.: 375 mm
(15 in)- Power
Max.: 1,413 W
Min.: 244 W
Description
-Extraction or insufflation
-Operation in all positions
-Easy to clean turbine
-Low height
Application
Direct insertion into a rectangular network.
Operation in all positions.
Construction
Box made of galvanized Z275 steel sheet.
Motor turbine fixed on removable cover.
Reaction turbine made of aluminum sheet, mounted in direct coupling on the engine shaft.
Remote terminal box.
1-speed three-phase AC motor 230/400 V, 50 Hz, variable frequency.
IP54 motor, class F, with integrated, non-connected thermal protection.
