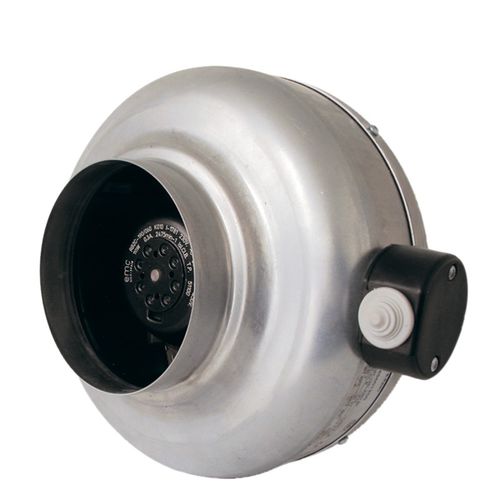

Centrifugal fan WIND VN SERIESboxductcommercial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal, box
- Installation
- duct
- Sector
- commercial
- Location
- outdoor
- Material
- metal, steel
- Color
- black
- Other characteristics
- permanent extraction
- Air flow
Max.: 1,200 m³/h
(42,377.6 ft³/h)Min.: 100 m³/h
(3,531.5 ft³/h)- Weight
Max.: 8 kg
(17.64 lb)Min.: 3 kg
(6.61 lb)- Power
Max.: 247 W
Min.: 57 W
Description
Construction
Envelope made of Z275 galvanized steel sheet.
Black polyester paint finish casing for VENT 355/400 N models (single-phase or three-phase version).
Centrifugal reaction turbine in polyamide (VENT 100 to 250 N, VENT 100 to 250 VN) or metal (VENT 315 N, VENT 315 VN and VENT 355 and 400 N).
Supplied with mounting feet (Ø 100 to 315 mm) or mounting bracket (Ø 355 or 400 mm) not assembled.
Motorization
External rotor AC motor, IP44, class B, integrated thermal protection with manual reset:
1 speed single-phase 230V, 50-60Hz: WIND 100 to 250 NK.
External rotor AC motor, IP44, class F, integrated thermal protection with manual reset:
1 speed single-phase 230V, 50-60Hz: VENT 315 NK and VENT 100 to 315 V N.
External rotor AC motor, IP54, class F, integrated thermal protection with manual reset:
1 speed single-phase 230V, 50-60Hz: VENT 355 and 400 N models.
1 speed three-phase 230/400V, 50Hz: VENT 355 and 400 N T models.
Outdoor terminal box.
