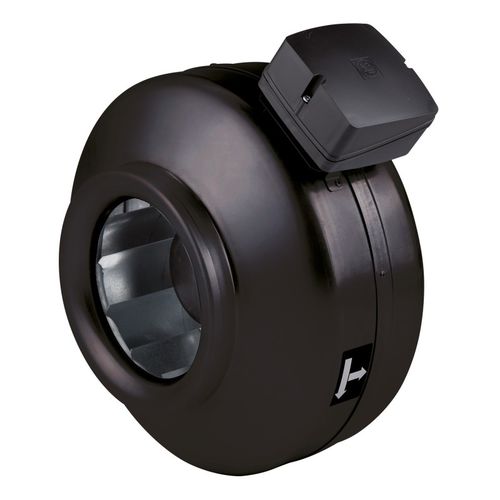

Centrifugal fan ECOWATT WIND SERIESboxrecessedcommercial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal, box
- Installation
- recessed
- Sector
- commercial
- Location
- indoor
- Material
- metal, steel
- Color
- black
- Air flow
Min.: 150 m³/h
(5,297.2 ft³/h)Max.: 3,000 m³/h
(105,944 ft³/h)- Weight
Min.: 4 kg
(8.82 lb)Max.: 22 kg
(48.5 lb)- Height
Min.: 243 mm
(10 in)Max.: 568 mm
(22 in)- Length
Min.: 251 mm
(10 in)Max.: 441 mm
(17 in)
Description
-Low consumption ECM motor
-Mounting in circular ducts
-Works in all positions
-Built-in potentiometer
Airflow temperature from -20°C to +40°C.
Construction
-Z275 galvanized steel casing, black polyester paint finish. Completely waterproof assembly.
-Centrifugal reaction turbine in polyamide (VENT 100 to 250 ECOWATT) or metal (VENT 315 to 400 ECOWATT).
-Supplied with mounting feet or mounting bracket unassembled.
Motorization
-ECM electronically commutated motor, IP44, very high efficiency, single-phase 230V/50-60Hz, thermal protection managed by electronics with manual reset.
-Potentiometer integrated into the electrical connection box.
Other VIM products

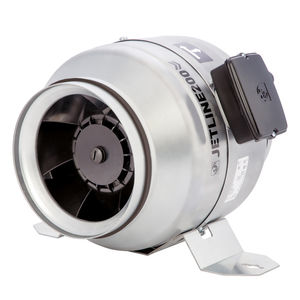

In-line fans
