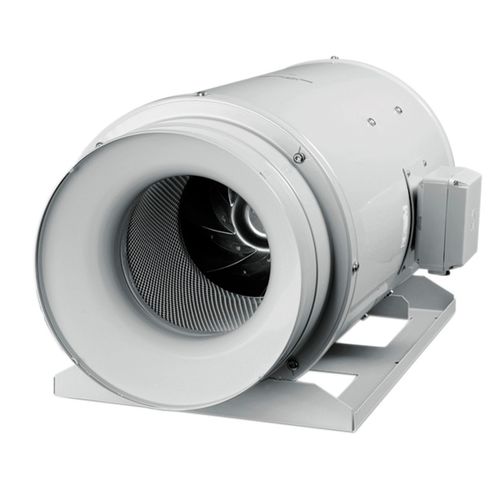

Centrifugal fan TD SILENT ECOWATT SERIESboxductcommercial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal, box
- Installation
- duct
- Sector
- commercial
- Location
- indoor
- Material
- fiberglass
- Color
- silver-colored
- Other characteristics
- acoustic
- Air flow
Max.: 1,600 m³/h
(56,503.5 ft³/h)Min.: 100 m³/h
(3,531.5 ft³/h)- Weight
9.5 kg, 14 kg
(20.94 lb, 30.86 lb)- Length
Max.: 825 mm
(32 in)Min.: 680 mm
(27 in)- Power
143 W, 247 W
Description
Quiet operation
Ease of installation and maintenance
Mounting in any position
Reduced footprint
TD SILENT ECOWATT ®: low-consumption ECM motor
Applications:
Installation of air ducts at any point.
Airflow temperature from -40°C to 60°C.
2 sizes: 1300/250, 2000/315.
2 diameters: 250, 315 mm.
Construction
Composed of 2 removable parts: support / motor + wheel.
Easy maintenance : intervention on the motor and / or wheel without dismantling the adjacent aeraulic network.
TD SILENT ECOWATT®: ECM electronic commutation motor, very high efficiency, single phase 230V 50 / 60Hz, IP44, thermal protection managed by electronic manual reset.
Potentiometer integrated in the electrical connection box.
Quiet design thanks to:
an aerodynamic air intake.
a perforated inner envelope, lined with acoustic insulation in fiberglass A2-s1, d0.
