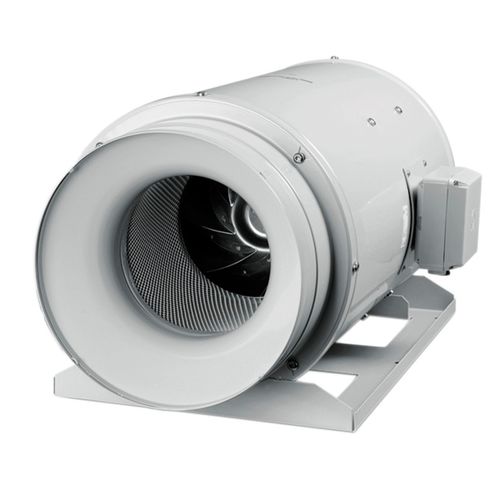

Centrifugal fan TD SILENT SERIESductcommercialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Installation
- duct
- Sector
- commercial
- Location
- indoor
- Material
- metal, fiberglass
- Color
- silver-colored
- Other characteristics
- acoustic
- Air flow
Min.: 100 m³/h
(3,531.5 ft³/h)Max.: 1,600 m³/h
(56,503.5 ft³/h)- Weight
20 kg, 25 kg
(44.09 lb, 55.12 lb)- Length
Min.: 680 mm
(27 in)Max.: 825 mm
(32 in)- Power
Min.: 144 W
Max.: 293 W
Description
Quiet operation
Ease of installation and maintenance
Mounting in any position
Reduced footprint
TD SILENT ECOWATT ®: low-consumption ECM motor
Applications:
Installation of air ducts at any point.
Airflow temperature from -40°C to 60°C.
2 sizes: 1300/250, 2000/315.
2 diameters: 250, 315 mm.
Construction
Composed of 2 removable parts: support / motor + wheel.
Easy maintenance : intervention on the motor and / or wheel without dismantling the adjacent aeraulic network.
Quiet design thanks to:
an aerodynamic air intake.
a perforated inner envelope, lined with acoustic insulation in fiberglass A2-s1, d0.
TD SILENT: single-phase AC motor 230V 50 / 60Hz, 3 speeds, IP44, class F, thermal opening protection (PTO) with manual reset. Control by 4-position speed selector or by voltage variator.
