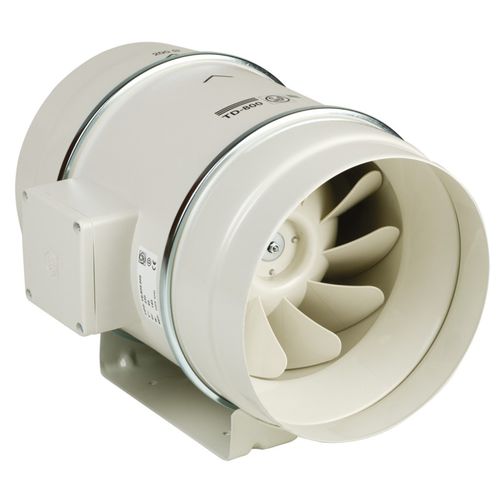

Box fan TD ECOWATT SERIESductcommercialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- box
- Installation
- duct
- Sector
- commercial
- Location
- indoor
- Material
- aluminum
- Color
- white
- Other characteristics
- permanent extraction
- Air flow
Min.: 100 m³/h
(3,531.5 ft³/h)Max.: 1,600 m³/h
(56,503.5 ft³/h)- Length
Min.: 386 mm
(15 in)Max.: 450 mm
(18 in)
Description
Ease of installation and maintenance
Mounting in any position
Reduced footprint
TD ECOWATT : low-consumption ECM motor
Applications:
Installation of air ducts at any point.
Temperature from -40°C to 60°C.
2 sizes: 1300/250, 2000/315.
2 diameters: 250, 315 mm.
Construction
Composed of 2 removable parts: support / motor + wheel
Easy maintenance : intervention on the motor and wheel without dismantling the aeraulic network.
TD ECOWATT : ECM electronic commutation motor, very high efficiency, single-phase 230V 50 / 60Hz power supply, thermal protection managed by electronics.
Potentiometer integrated in the electrical connection box.
