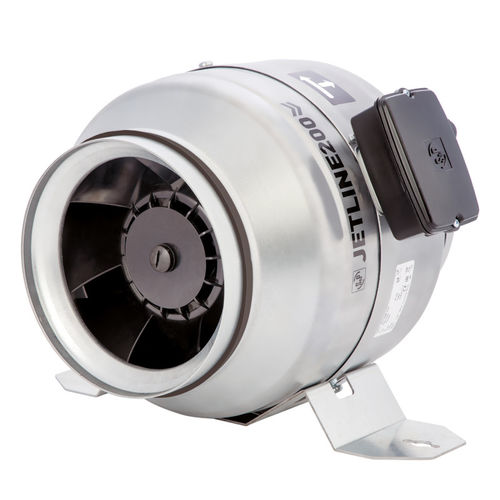

Centrifugal fan JETLINE ECOWATTboxductcommercial
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal, box
- Installation
- duct
- Sector
- commercial
- Location
- indoor
- Material
- steel, plastic
- Color
- silver-colored
- Other characteristics
- permanent extraction
- Air flow
Max.: 1,600 m³/h
(56,503.5 ft³/h)Min.: 100 m³/h
(3,531.5 ft³/h)- Weight
Max.: 8 kg
(17.64 lb)Min.: 2.5 kg
(5.51 lb)- Height
Max.: 407 mm
(16 in)Min.: 306 mm
(12 in)- Length
Max.: 369 mm
(15 in)Min.: 276 mm
(11 in)
Description
Construction
-Z275 galvanized steel casing.
-Waterproof two-material injected plastic electrical connection box with fan housing.
-Equipped with sealing gaskets.
-Helico-centrifugal reaction turbine in polyamide.
-Discharge diffuser and injected plastic guide vanes to increase performance and reduce noise levels.
-The support foot provided allows the fan to be mounted in 2 positions by changing the fixing points (screws pre-tightened in the factory).
Motorization
-ECM electronically commutated motor, IP44, very high efficiency, single-phase 230V/50-60Hz, thermal protection managed by electronics with manual reset.
-Potentiometer integrated into the electrical connection box.
