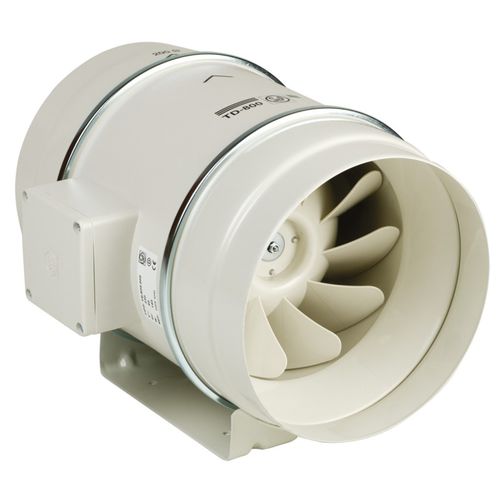

Centrifugal fan TD SERIESductcommercialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Installation
- duct
- Sector
- commercial
- Location
- indoor
- Material
- metal
- Color
- white
- Other characteristics
- permanent extraction
- Air flow
Max.: 5,000 m³/h
(176,573.3 ft³/h)Min.: 100 m³/h
(3,531.5 ft³/h)- Width
Max.: 356 mm
(14 in)Min.: 291 mm
(11 in)- Length
Max.: 450 mm
(18 in)Min.: 386 mm
(15 in)
Description
-Ease of installation and maintenance
-Mounting in any position
-Reduced footprint
-TD ECOWATT : low-consumption ECM motor
Applications:
Installation of air ducts at any point.
Temperature from -40°C to 60°C.
5 sizes in single phase: 1000/250; 1300/250; 2000/315; 4000/355; 6000/400.
2 sizes in three-phase: 4000/355; 6000/400.
4 diameters: 250, 315, 355, 400 mm.
Construction
Composed of 2 removable parts: support / motor + wheel
Easy maintenance : intervention on the motor and wheel without dismantling the aeraulic network.
Motorization
-TD 1000 to 2000: Motors Single-phase 230V 50 / 60Hz, 3 speeds, IP44, Class B, thermal opening protection (PTO) not connected. Control by 4-position speed selector or by voltage variator.
-TD 4000 and 6000: 1 speed motors, IP54, Class F, thermal opening protection (PTO) not connected. Power supply: single-phase 230V 50 / 60Hz or three-phase 400V 50Hz. Control by voltage or frequency variator.
