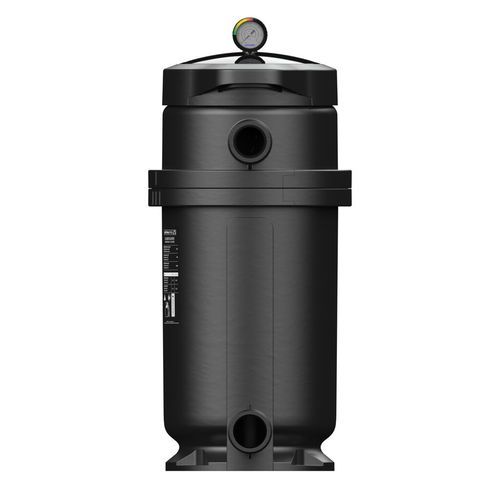

Cartridge swimming pool filter CLARISAVE

Description
ClariSave cartridge filters are a sustainable option for care and maintenance of residential pools of any size, delivering fine filtration down to 20 µm.

EFFICIENT FILTRATION
Clear water is maintained thanks to a drain mesh that captures particles down to 20 µm, removing contaminants imperceptible to the human eye.

SAVE WITH EVERY DROP
Multi-layer cartridge technology distributes water flow evenly and disperses dirt across the media, delaying clogging. This extends the interval between cartridge washes by up to 20% and increases cartridge service life. The tank’s top-opening system prevents water loss when removing the cartridge and cleaning requires only a quick hosedown, reducing water consumption compared with traditional backwash systems.

QUICK, EASY ASSEMBLY
ClariSave is compact, lightweight and durable, designed for straightforward installation and maintenance. The top cover includes carrying handles for easy handling. Adjustable connections adapt to piping placement for direct connection without a multiport valve, simplifying installation. A glycerin pressure gauge provides clear pressure readings and the clogging indicator can be adjusted during set-up to optimize maintenance.

Key features

• Filtration fineness: drain mesh captures particles down to 20 µm
• Prolongs time between washes by up to 20%
• Top-opening tank to avoid water loss during cartridge removal
• Compact, lightweight and durable design with carrying handles
• Adjustable connections for direct piping connection (no multiport valve required)
• Glycerin pressure gauge and adjustable clogging indicator

Codes and models (table)
CODE | Description | Spare Parts
77113 | ClariSave 10 cartridge filter | See Spare Parts
77114 | ClariSave 15 cartridge filter | See Spare Parts
77115 | ClariSave 20 cartridge filter | See Spare Parts
77116 | ClariSave 25 cartridge filter | See Spare Parts
77129 | CARTRIDGE FILTER 10 |
77130 | CARTRIDGE FILTER 15 |
77131 | CARTRIDGE FILTER 20 |
77132 | CARTRIDGE FILTER 25 |

Technical specifications

• Type: cartridge filter for residential pools
• Particle retention: up to 20 µm
• Water-saving design: top-opening tank to avoid water loss during cleaning; cleaning by quick hosedown
• Maintenance: multi-layer cartridge technology disperses dirt to delay clogging and extend cartridge life
• Installation: compact and lightweight; handles on top cover for handling; adjustable connections for flexible piping alignment; direct connection (no multiport valve required)
• Instrumentation: glycerin pressure gauge for accurate pressure readings; adjustable clogging indicator
• Available models/references: ClariSave 10, 15, 20, 25 (codes 77113–77116) and cartridge part codes 77129–77132
