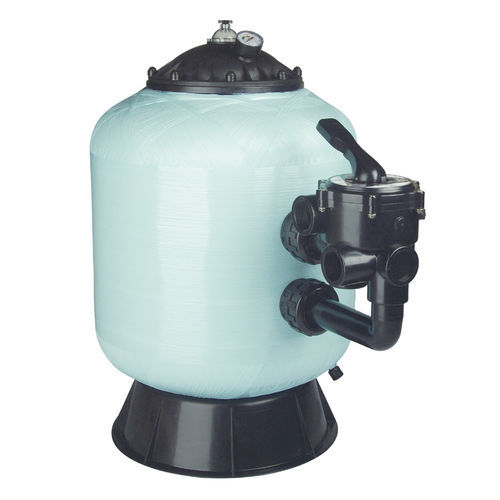

Sand filter unit BERLIN

glass

Description
Screw-down lid Ø 230 mm, injection-moulded. Fitted with manual air and water bleed valves and a pressure gauge. Side-mounted multiport valve on fitted versions. Maximum filtration speed expressed in m3/h/m2. Complies with EN 16713-1. Compatible with sand and glass filtration media. Multiple diameters and flow rates available; see codes below.

Available codes / capacities (table)
00541 | Ø 500 / 9,000 l/h 1 ½” with valve
00542 | Ø 600 / 14,000 l/h 1 ½” with valve
00543 | Ø 750 / 22,000 l/h 2” with valve
00544-0100 | Ø 900 / 30,000 l/h 2 ½” without valve
15397 | 30,000 l/h Ø 900 mm outlet 2” without multiport valve
28474 | 30,000 l/h Ø 900 mm outlet 2” (4 bar) without multiport valve
00545 | Ø 1,050 / 43,000 l/h without valve
00546 | Ø 1,200 / 56,000 l/h without valve

Document downloads (listed on product page)

• Leaflet EN FR
• Leaflet EN IT
• Leaflet EN ES
• Product Data Sheet Berlin filter EN ES
• Product Data Sheet BERLINBWCULLIGAN EN (2024)

Technical specifications

• 230 mm screw-down lid, injection-moulded
• Manual air bleed valve
• Manual water bleed valve
• Pressure gauge included
• Side-mounted multiport valve (on fitted versions)
• Compatible with sand and glass filtration media
• Complies with EN 16713-1
• Multiple diameters and flow rates available (see codes: 00541–00546)
