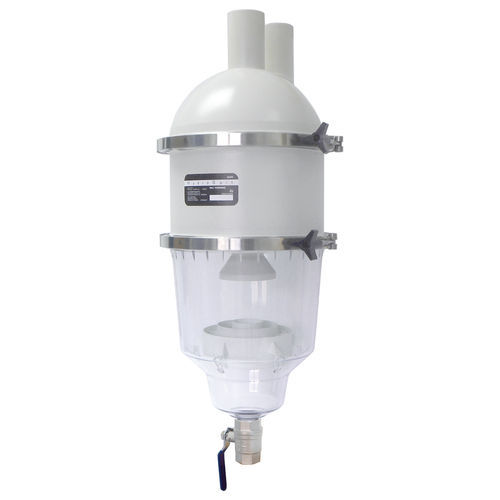

Pool prefilter HYDROSPIN

water treatment

Description
Hydrospin hydrocyclone pre-filters are designed for integration into new or existing filtration systems. They treat flows from 5 to 30 m³/h with a maximum working pressure of 2.5 bar. Installed between the pump and the filter, Hydrospin separates solids down to 40 µm and can reduce the water required for filter backwash by approximately 50%. The unit includes a solids-collection chamber divided into three functional zones (settling, clarifying and thickening) and can be cleaned with about 5 litres of water without stopping the pump.

Product table
CODE | Description | Spare Parts
45289 | Hydrospin pre-filter | See spare parts

Technical specifications

• Brand: Astralpool
• Type: Hydrocyclone pre-filter
• Flow range: 5–30 m³/h
• Maximum working pressure: 2.5 bar
• Installation: fitted between the pump and the filter (suitable for new and existing systems)
• Particle separation capability: solids down to 40 µm
• Water saving: reduces backwash water consumption by approximately 50%
• Solids collection device: three separate zones — settling, clarifying and thickening
• Cleaning: can be cleaned with approx. 5 litres of water without stopping the pump
• Associated product code: 45289
