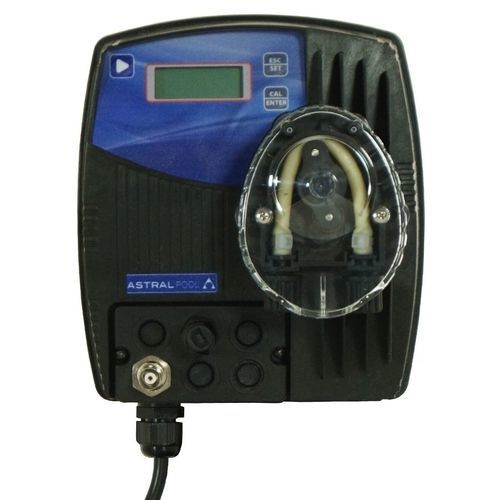

Commercial dosage system CONTROL BASIC NEXT

for swimming poolwaterautomatic

Description

• Automatic pH and redox (ORP) control and dosing system for water treatment applications.
• Measurement ranges: pH 0–14; ORP 0–1000 mV.
• Supplied with a complete installation kit: pH or ORP sensor (depending on model), sensor holder, calibration/standard solutions, suction and dosing tubing, and fittings.
• ABS enclosure with IP65 protection rating.
• Digital display for pH and ORP readings.
• Remote on/off input (230 VAC) that keeps the display powered for calibration and programming.
• Available dosing outputs: 0.4 L/h (spa), 1.5 L/h, 3.0 L/h.

Model variants
CODE | Description | Spare Parts
66162 | Control Basic Next pH 1.5 L/h | See spare parts
66336 | Control Basic Next pH 3.0 L/h | See spare parts
66163 | Control Basic Next ORP 1.5 L/h | See spare parts
66337 | Control Basic Next ORP 3.0 L/h | See spare parts
66156 | Control Basic Next Spa 0.4 L/h | See spare parts
66157 | Control Basic Next Spa ORP 0.4 L/h | See spare parts


Technical specifications

• Function: Automatic regulation and dosing for pH and ORP (redox).
• pH measurement range: 0–14.
• ORP measurement range: 0–1000 mV.
• Installation kit included: sensor (pH or ORP depending on model), sensor holder, calibration solutions, suction and dosing tubing, fittings.
• Enclosure material: ABS; Protection rating: IP65.
• Display: Digital readout for pH and ORP values.
• Remote input: 230 VAC remote on-off input (keeps display powered for calibration and programming).
• Dosing capacities by variant: 0.4 L/h, 1.5 L/h, 3.0 L/h.
• Product family / model name: Control Basic Next.
