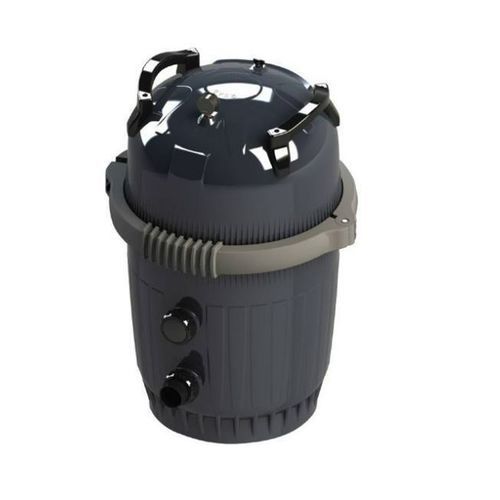

Element swimming pool filter VIRON

cartridge

Description
High-capacity cartridge filter for pool water clarification, available with 4×100 Sq Ft (≈38 m²) or 4×150 Sq Ft (≈57 m²) elements to extend intervals between cleanings. Dual 50 mm inlet and outlet barrel unions and an oil-filled pressure gauge enable reliable monitoring and simplified maintenance. Suited to rural installations and sites with water-use restrictions. Tank warranty: limited 5 years; other components: 12 months.

Models / Table
CODE | Description | Spare Parts
76340 | Viron QL 420 cartridge filter | See spare parts
76341 | Viron QL 540 cartridge filter | See spare parts

Document downloads (available)

• Generic manual ResidentialFiltersAstralpool (DE / EN / ES +)
• Instruction manual (EN / ES / FR +)
• Quick start guide ResidentialFiltersAstralpool (DE / EN / ES +)
• Leaflet Viron cartridge filter (EN)

Characteristics / Technical specifications

• High-capacity cartridge filtration
• Element options: 4×100 Sq Ft (≈38 m²) or 4×150 Sq Ft (≈57 m²)
• Extended periods between cleanings (typical annual wash in normal conditions)
• Dual 50 mm inlet and outlet barrel unions
• Oil-filled pressure gauge for accurate monitoring
• Application: rural sites and areas with water restrictions
• Tank warranty: limited 5 years
• Warranty on other components: 12 months
• Spare part codes: 76340 (Viron QL 420), 76341 (Viron QL 540)
