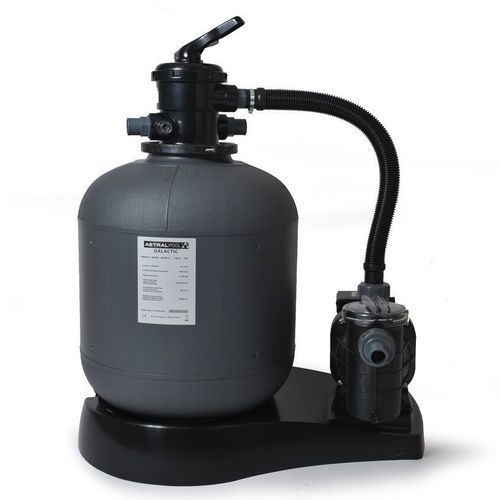

Filter unit with pump GALACTIC MONOBLOCK

thermostatic

Description
Monobloc Galactic.
Blow-molded high-resistance thermoplastic monoblock filter for pool filtration. Compact unit combining filtration body, multiport selector valve and integrated pump for single-package installation.

Includes

• 6-way multiport selector valve
• Pressure gauge
• Manual air release
• Water drain
• Compact self-priming pump with power cable and plug
• Hose
• Fittings
• Base and accessories for complete assembly

Additional information
Maximum working pressure: 2.4 bar.
Included fittings: D38 and D50 mm for installation versatility.
Complies with filtration requirements according to EN 16713-01.

Variants / Codes
CODE | Description | Spare parts
74472 | Ø400 – 6 m³/h | See spare parts
74471 | Ø380 – 5 m³/h | See spare parts
74473 | Ø500 – 8 m³/h | See spare parts
74474 | Ø500 – 10 m³/h | See spare parts
74475 | Ø600 – 12 m³/h | See spare parts
74476 | Ø600 – 14 m³/h | See spare parts

Documentation

• Brochure Monobloc Galactic
• General manual ResidentialFiltersAstralpool (multilingual)
• Quick start guide ResidentialFiltersAstralpool (multilingual)

Technical specifications

• Body: blow-molded high-resistance thermoplastic
• Valve: 6-position multiport valve
• Included indicators and drains: pressure gauge, manual air release, water drain
• Pump: compact self-priming pump (supplied with cable and plug)
• Accessories supplied: hose, fittings, base and mounting accessories
• Maximum working pressure: 2.4 bar
• Fittings supplied: D38 mm and D50 mm
• Compliance: meets filtration requirements according to EN 16713-01
• Available variants (diameters and flows): Ø380–Ø600, 5–14 m³/h (see variants table)
