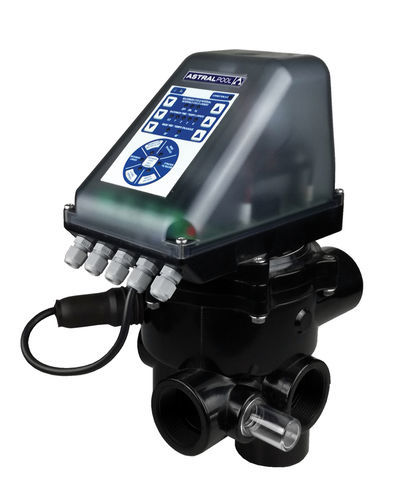

Sluice gate VRAC III

Description
Automatic multiport valve with push-button keypad for control of filtration, backwashing, rinsing, emptying, recirculation and shut-down. Programmed times are retained in case of power loss. Compatible with sand filters up to 750 mm diameter. Analog pressure sensor replaces the pressure switch to improve operation. LED indicators and power surge protection. Spring coated to prevent rusting.

Key features

• Adaptable: fits most sand filter installations and is quick to install.
• Simple programming: push-button keypad with memory of programmed cycles.
• Hygiene: allows scheduled daily filtration to optimise water quality and wash cycles.
• Safety: continuous system monitoring, power surge protection and corrosion-resistant spring.
• Indicators: LED lights for quick status reading.

Codes / references
CODE | Description | Spare parts
72433 | Basic 1½" Lateral, Var 3 | See spare parts
72434 | Basic 2" Lateral, Var 3 | See spare parts

Technical specifications

• Brand: Astralpool
• Model: VRAC III
• Type: Automatic multiport valve
• Control: Push-button keypad with simple programming; programmed times retained after power loss
• Functions: Filtration, backwashing, rinsing, emptying, recirculation, shut-down
• Compatibility: For sand filters up to Ø 750 mm
• Power supply: 230/115 VAC
• Pressure sensor: Analog pressure sensor (replaces pressure switch)
• Protection: Power surge protection; coated spring to prevent rust
• Indicators: LED status lights
• Spare parts codes: 72433 (Basic 1½" Lateral, Var 3), 72434 (Basic 2" Lateral, Var 3)
