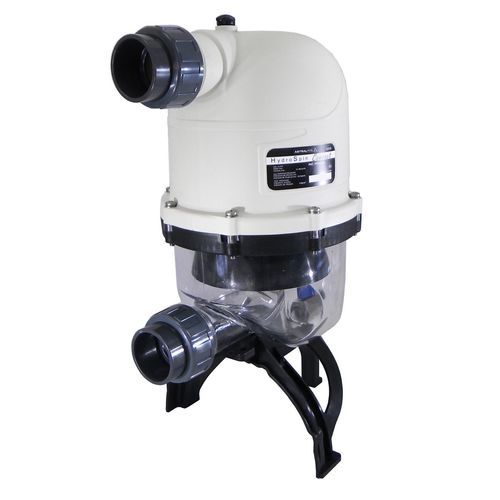

Pool prefilter HYDROSPIN COMPACT

Overview
The Hydrospin family (Hydrospin and Hydrospin Compact) are hydrocyclone pre-filters designed for installation between the pump and the main filter on both new and existing filtration systems. They remove solids down to 40 µm and significantly reduce the water required for filter backwashing. Hydrospin units treat up to 30 m³/h; the Hydrospin Compact (code 53743) is suitable for approximately 3–16.5 m³/h. Maximum working pressure: 2.5 bar. The device collects solids in three separate zones (settling, clarifying, clouding) and can be cleaned without stopping the pump using a small volume of water.

Reference table
CODE - Description - Spare parts
53743 - Hydrospin Compact - See spare parts list

Document downloads

• Product Data Sheet Hydrospin Compact EN ES
• Installation manual Hydrospin Compact EN ES FR +
• Generic manual ResidentialFiltersAstralpool DE EN ES+
• Quick start guide ResidentialFiltersAstralpool DE EN ES+

Technical specifications

• Model: Hydrospin Compact
• Product code: 53743
• Type: Hydrocyclone pre-filter (Hydrospin)
• Treated flow: Hydrospin up to 30 m³/h; Hydrospin Compact (53743) approx. 3–16.5 m³/h
• Maximum working pressure: 2.5 bar
• Installation position: between pump and filter (new or existing installations)
• Particle separation capability: solids down to 40 µm
• Cleaning efficiency: reduces water consumption for filter cleaning by about half
• Solids collection device: three separate zones — settling, clarifying and clouding
• Cleaning water required: can be cleaned using approx. 5 litres without stopping the pump
• Brand: Astralpool
