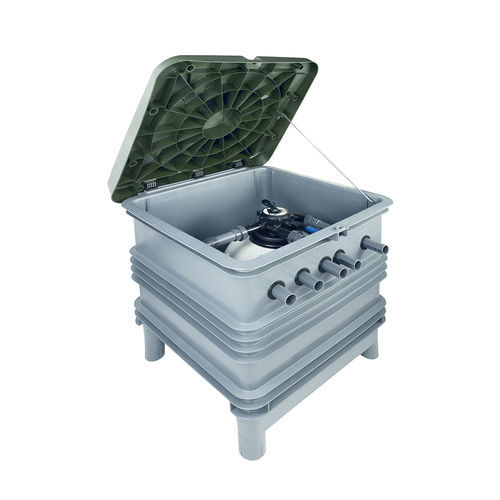

Sand pool filtration system RAMSES

Description
Embedded in-ground housing for pool filtration comprising an injection-moulded reinforced polymer body and lid. Supplied complete and pre-assembled; designed for outdoor installation and to house filtration equipment including pump and filter.

Connections & Application
Primary hydraulic connection: Ø50 PVC tube
Suitable for: residential pools up to 80 m3

Components included

• 1 hp pump
• Filter (according to selected variant: ASTER 550 or Millennium 560)
• 6-way top valve
• Integrated internal PVC connections and valves

Variants / Table
CODE | Description | Spare Parts
41910 | Ramses with ASTER 550 Filter | See Spare Parts
70353 | ASTER 550 1 CV Sena S/A + Electrólisis Sel Clear 55 + Valve fill and shower |
70354 | ASTER 550 1 CV Sena S/A + Electrólisis Sel Clear 95 + Valve fill and shower |
70355 | ASTER 550 1 CV Sena S/A + Electrólisis Sel Clear 55 + pH control + Valve fill and shower |
70356 | ASTER 550 1 CV Sena S/A + Electrólisis Sel Clear 95 + pH control + Valve fill and shower |
69829 | Ramses with Millennium 560 filter | See Spare Parts

Technical specifications

• Housing material: injection-moulded reinforced polymer (body and lid)
• Supply condition: complete and pre-assembled
• Primary hydraulic connection: Ø50 PVC tube
• Recommended pool volume: up to 80 m3
• Pump power: 1 hp (standard)
• Filter: depends on selected variant (ASTER 550 or Millennium 560)
• Valve: 6-way top valve included
• Internal plumbing: integrated PVC connections and valves
• Available variants identified by product codes: 41910, 69829, 70353–70356
