Sluice gate NEW GENERATION

Overview

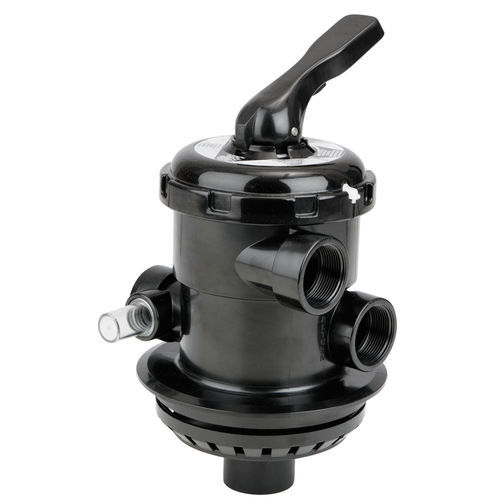

New Generation manual multiport valve in Top version, available in 1½" and 2". Intended for pool filtration circuits; incorporates a bayonet closing system that replaces bolts to ease maintenance and limit corrosion.

Features

• Manual multiport valve with bayonet closing system (replaces bolts)
• Easier dismantling for maintenance and improved resistance to rust
• Available versions: 1½" and 2"; Top Eco available in 1½"
• Variants: NPT version and Aster-compatible versions

Codes / Models
20565 — Top 1½" Multiport valve — See spare parts
22358 — Top 1½" NPT Multiport valve — See spare parts

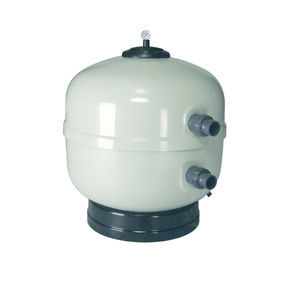

31993 — Top 1½" Multiport valve (for Aster filter) — See spare parts
33969 — Top 2" Multiport valve (for Aster filter) — See spare parts

Documents

• Leaflet EN ES
• Manual EN ES FR +
• Generic manual ResidentialFiltersAstralpool DE EN ES +
• Quick start guide ResidentialFiltersAstralpool DE EN ES +

Technical specifications

• Type: Manual multiport valve (6-way functions)
• Functions: filtration, drain/vent, closed, backwash, recirculation, rinse
• Materials: body, cover and handle in ABS; distributor in PPO; seals in EPDM; metal parts in stainless steel
• Closure: bayonet closing system
• Reference codes: 20565, 22358, 31993, 33969
