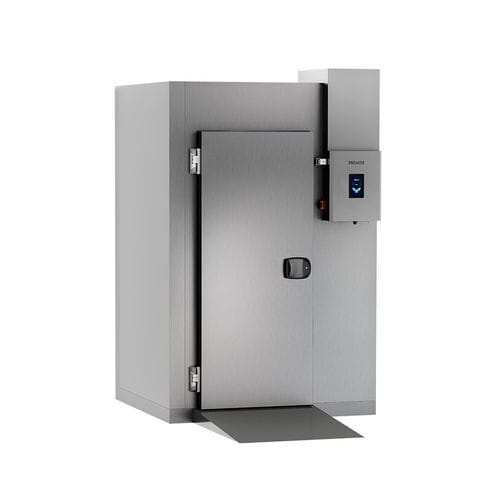

Roll-in blast chiller PREMIER BCF RI M 150 CO2 1N DL

for the food industryfor commercial kitchenfor 1 trolley

Product overview
The PREMIER BCF RI M 150 CO2 1N DL is a roll-in blast chiller/freezer built in panels for integration with CO2 (R744) remote cooling systems. It is designed for professional kitchens and food production environments. Outer dimensions (W x D x H): 1500 x 1550 x 2395 mm.

Key features

• Workflow-oriented control — 7-inch touchscreen controller with an intuitive interface for custom cycle parameters and clear process information.
• Connected kitchen management — Wi‑Fi and Ethernet ports for integration with kitchen monitoring platforms and retrieval of operational data, including HACCP logs.
• Food safety support — Integrated HACCP data collection to document chilling and freezing cycles for compliance and record-keeping.
• Hygienic stainless-steel design — Interior and exterior in AISI 304 stainless steel suitable for professional cleaning routines.
• Installation convenience — External condensate drain tube and selectable door hinge (right-hand standard, left-hand optional) for flexible layout and simplified maintenance.

Documentation and handling
Supplied unassembled on pallets for site assembly and installation.

Technical specifications

• Item number: 5BMA8DCRH-F1A3MC
• Model name: PREMIER BCF RI M 150 CO2 1N DL
• Brand: Hoshizaki
• Warranty: 1 Year on Parts & Labour (subject to country agreement)
• Country of origin: Italy
• Accessories included: N/A
• Construction: Cabinet with floor and ramp, panel assembly
• Equipped with: controller, heated core probe, USB port, Wi‑Fi, Ethernet port, lock closure, external condensate drain tube
• Packaging: Supplied unassembled on pallets
• Width: 1500 mm (packed widths: 1050 mm and 1500 mm)
• Width inside: 800 mm
• Depth: 1550 mm (packed depths: 2270 mm and 2250 mm)
• Depth inside: 1200 mm
• Height: 2395 mm (packed heights: 560 mm and 1050 mm)
• Height inside: 1850 mm
• Packed volume: 4.9 m³
• Required cooling capacity: 18500 W
• Climate class: 5 (max ambient 40°C at 40% RH)
• Compatible trolleys: 2 × GN1/1 or 1 × GN2/1, or 2 × EN60/40 or 1 × EN60/80
• Connection load: 616 W (cold cycles)
• Fuse rating: 16 A
• Exterior / Interior: Stainless steel AISI 304
• Gross weight: 550 kg | Net weight: 500 kg
• Door clear opening (W x H): 800 x 1850 mm
• Insulation: Polyurethane
• Power supply: 380–420V / 1N / 50Hz
• Temperature range: -40 to +40 °C
• Cooling system: For remote cooling system (CO2, R744)
• Chilling capacity: 150
• Freezing capacity: 100
• GWP: 1
• Refrigerant compatibility: R744
• SKU: 5BMA8DCRH-F1A3MC
