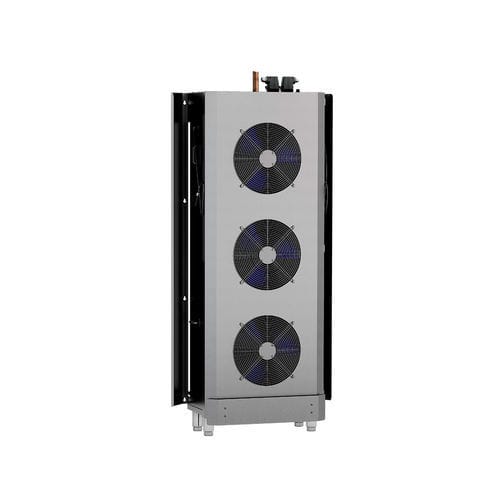

Built-in blast chiller PREMIER TK150 CO2

for the food industryfor commercial kitchen3 tray

Presentation
The PREMIER TK150 CO2 is a technical kit module for blast chiller/freezer designed for seamless integration into professional workflows. Outer dimensions (W x D x H): 1015 x 410 x 2094 mm. Wi‑Fi connectivity and an Ethernet port enable connection with kitchen monitoring platforms and access to operational information such as HACCP data.

Key features

• Designed to match your workflow: 7-inch intuitive touchscreen controller with user-friendly interface, detailed information and full customization of settings and cycle parameters.
• Connected Kitchen Management: Wi‑Fi and Ethernet connectivity for modern kitchen monitoring platforms and access to operational data.
• Food safety compliance: Integrated HACCP data collection to support documentation of chilling processes.
• Hygienic design: Interior and exterior in stainless steel suitable for heavy-duty kitchen environments and professional cleaning routines.
• Practical convenience (BCF models): External condensate drain tube; door hinge option (right-hand standard, left-hand optional).
• Designed for seamless integration (TK): Smart connectors for fast installation and reliable integration within the TK range.

Available documentation (titles)
Declaration of conformity
Instruction manual

Technical characteristics / specifications

• Item number: 5LMA6GCRH-N1ALBC
• Model name: PREMIER TK150 CO2
• Brand: Hoshizaki
• Warranty period: 1 Year on Parts & Labour - based on country agreement
• Country of origin: Italy
• Accessories included: N/A
• Title: Technical kit module for blast chiller/freezer
• Equipped with: Controller, heated core probe, Wi‑fi connection, Ethernet port, USB‑port, drip collection tray and feet
• Width: 1015 mm
• Width (packed): 1050 mm
• Depth: 410 mm
• Depth (packed): 2270 mm
• Height: 2094 mm
• Height including legs (minimum): 2094 mm
• Height including legs (maximum): 2139 mm
• Height (packed): 583 mm
• Volume (packed): 1.3 m³
• Required cooling capacity: 18500 W
• Climate class: 5 (max. ambient 40°C w/ 40% RH)
• Connection load: 510 W
• Fuse Rating: 16 A
• Exterior: Stainless steel AISI 304
• Gross weight: 129 kg
• Net weight: 91 kg
• Power supply: 1/220 - 240V/50Hz
• Maximum system pressure: 60 Bar
• Temperature range: -40/+40°C
• Cooling system: For remote cooling system
• Chilling capacity: 150
• Freezing capacity: 100
• GWP: 1 GWP
• Refrigerant compatibility: R744
• SKU: 5LMA6GCRH-N1ALBC
