Roll-in blast chiller PREMIER BCF RI M 450 CO2 1N DL

for the food industryfor commercial kitchen3 tray

Product overview

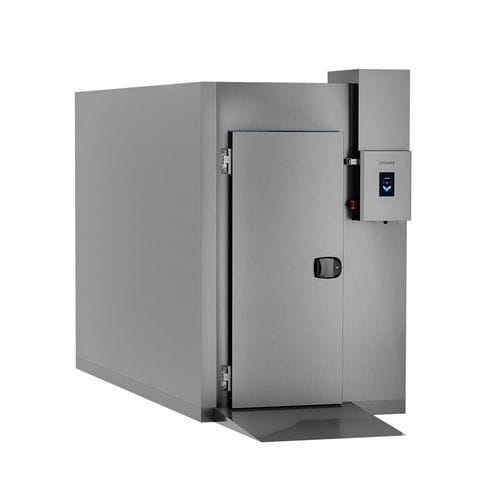

The PREMIER BCF RI M 450 CO2 1N DL is a Roll-in Blast Chiller/Freezer made in panels for CO2 (R744) cooling systems, designed for professional kitchens and roll-in workflow integration. Outer dimensions (W x D x H): 1500 x 3650 x 2395 mm. Supplied unassembled on pallets. Equipped with cabinet with floor, ramp, controller, heated core probe, USB port, wi-fi connection, Ethernet port, lock closure and external condensate drain tube.

Connectivity and management

• Wi-Fi connectivity and Ethernet port for connection to kitchen monitoring platforms.
• Integrated HACCP data collection for documentation of chilling/freezing processes.
• USB port for data export and system access.

Key features

• 7-inch intuitive touchscreen controller with user-friendly interface and full customization of settings and cycle parameters.
• Hygienic design: interior and exterior in stainless steel AISI 304 for durability and professional cleaning routines.
• Practical installation and maintenance: external condensate drain tube; right-hand hinged door standard (left-hand hinged door optional).
• Designed to match high-capacity workflows with roll-in trolley compatibility.

Specifications
Item number: 5BMA8DCRH-F3A3MC
Model name: PREMIER BCF RI M 450 CO2 1N DL
Brand: Hoshizaki
Warranty period: 1 Year on Parts & Labour - based on country agreement
Country of origin: Italy
Accessories included: N/A
Equipped with: Cabinet with floor, ramp, controller, heated core probe, USB-port, wi-fi connection, Ethernet port, lock closure, external condensate drain tube
Supplied unassembled: Supplied unassembled on pallets
Width: 1500 mm
Width (packed): 1050 mm
Width (packed, second package): 1570 mm
Width inside: 800 mm
Depth: 3650 mm
Depth (packed): 2270 mm
Depth (packed, second package): 2250 mm
Depth inside: 3300 mm
Height: 2395 mm
Height (packed): 560 mm
Height (packed, second package): 1800 mm
Height inside: 1850 mm
Volume (packed): 10.4 m³
Required cooling capacity: 55000 W
Climate class: 5 (max. ambient 40°C w/ 40% RH)
Compatible with: Trollies 6 x GN1/1, 3 x GN2/1 or 6 x EN60/40, 3 x EN60/80
Connection load: 1636 W
Fuse Rating: 32 A
Exterior: Stainless steel AISI 304
Interior: Stainless steel AISI 304
Gross weight: 870 kg
Net weight: 820 kg
Door clear opening (W x H): 800 x 1850 mm
Insulation type: Polyurethane
Power supply: 380-420V/1N/50Hz
Temperature range: -40/+40°C
Cooling system: For remote cooling system
Chilling capacity: 450 (unit as per manufacturer specification)
Freezing capacity: 300 (unit as per manufacturer specification)
GWP: 1 GWP
Refrigerant compatibility: R744
