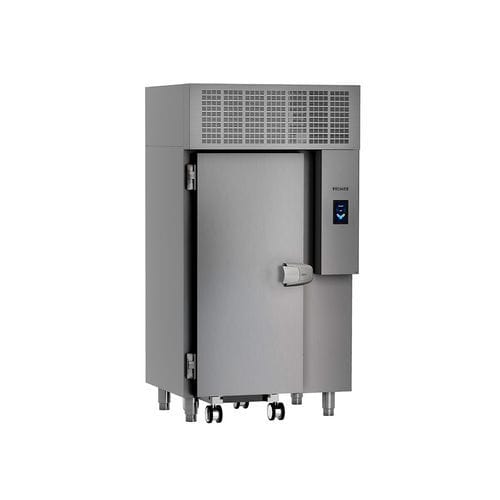

Roll-in blast chiller PREMIER BCF RIT U 100 A 3N DL

industrialprofessionalfor 1 trolley

Product overview
The PREMIER BCF RIT U 100 A 3N DL is a roll-in unibody blast chiller/freezer supplied with a transport car support with legs, engineered for professional foodservice and industrial kitchens. External dimensions (W x D x H): 1210 x 1081 x 2280 mm.

Connected kitchen management
Built-in Wi‑Fi and Ethernet connectivity allow integration with kitchen monitoring platforms for remote access to operational data, HACCP reporting and cycle management.

Key features

• 7-inch touchscreen controller with intuitive interface for programmable cycles and detailed status information.
• Wi‑Fi and Ethernet ports for networked monitoring and HACCP data export.
• Integrated HACCP data logging to support traceability and food-safety documentation.
• Hygienic stainless steel AISI 304 interior and exterior designed for professional cleaning routines.
• External condensate drain tube to simplify installation and maintenance.
• Right-hand hinged door as standard; left-hand hinge optional for layout flexibility.

Equipment / Features included
Cabinet with controller, heated core probe, USB port, Wi‑Fi connection, Ethernet port, lockable closure, external condensate drain tube.

Technical specifications (summary)

• Item number / SKU: 5CCA8DCEH-20A3IC
• Model name: PREMIER BCF RIT U 100 A 3N DL
• Brand: Hoshizaki
• Country of origin: Italy
• Warranty: 1 Year on Parts & Labour (country agreement)
• Dimensions (W x D x H): 1210 x 1081 x 2280 mm
• Door clear opening (W x H): 690 x 1545.8 mm
• Cooling capacity (evap. -10°C / cond. 45°C): 7233 W
• Chilling capacity: 100 / Freezing capacity: 78
• Temperature range: -40 to +40 °C
• Power supply: 380-420V / 3N / 50Hz
• Connection load: 4629 W / Fuse: 20 A
• Refrigerant: R290, 0.45 kg (CO2 eq. 1.35 kg, GWP 3)
• Cooling system: Air cooled
• Climate class: 5 (max ambient 40°C / 40% RH)
• Compatible with trolley: GN1/1 or EN60/40
• Exterior / Interior: Stainless steel AISI 304
• Net weight: 380 kg / Gross weight: 410 kg
• Sound level: 70.76 dB
