Roll-in blast chiller PREMIER BCF RI U 100 A 3N DL

for the food industryfor commercial kitchenfor 1 trolley

Product overview

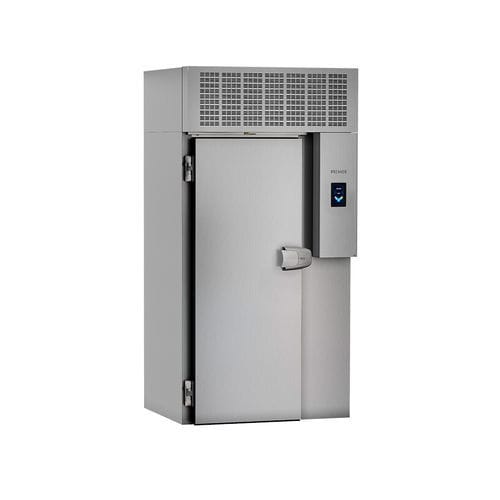

The PREMIER BCF RI U 100 A 3N DL is a roll-in unibody blast chiller/freezer, air-cooled, designed for integration into professional food production and catering workflows. Outer dimensions (W x D x H): 1210 x 1081 x 2378 mm. Connectivity options include Wi‑Fi and an Ethernet port for connection to kitchen monitoring platforms and access to operational data such as HACCP records.

Key features

• 7-inch touchscreen controller with intuitive interface for full customization of cycles and parameters
• Wi‑Fi connectivity and Ethernet port for connected kitchen management
• Integrated HACCP data collection to support process documentation
• Interior and exterior in stainless steel for hygienic design and compatibility with professional cleaning routines
• External condensate drain tube for simplified installation and maintenance
• Standard right-hand hinged door; left-hand hinged door available as an option

Documentation

• Declaration of conformity (available as product documentation)
• Instruction manual (User manual for roll-ins)

Technical specifications

• Item number: 5BCA8DCEH-20A3MC
• Model name: PREMIER BCF RI U 100 A 3N DL
• Brand: Hoshizaki
• Warranty period: 1 Year on Parts & Labour (subject to country agreement)
• Country of origin: Italy
• Accessories included: N/A
• Title: Roll-in Unibody Blast Chiller/Freezer, Air Cooled
• Equipped with: cabinet with floor, ramp, controller, heated core probe, USB port, Wi‑Fi connection, Ethernet port, lock closure, external condensate drain tube
• Width: 1210 mm
• Width (packed): 1270 mm
• Width inside: 690 mm
• Depth: 1081 mm
• Depth (packed): 1150 mm
• Depth inside: 817 mm
• Height: 2378 mm
• Height (packed): 2527 mm
• Height inside: 1881 mm
• Volume (packed): 3.7 m³
• Cooling capacity (evap. -10°C / cond. 45°C): 7233 W
• Climate class: 5 (max. ambient 40°C / 40% RH)
• Compatible with: Trolley GN1/1 or EN60/40
• Connection load: 4629 W
• Fuse rating: 20 A
• Exterior: Stainless steel AISI 304
• Interior: Stainless steel AISI 304
• Gross weight: 410 kg
• Net weight: 380 kg
• Door clear opening (W x H): 673 x 1881.8 mm
• Insulation type: Polyurethane
• Power supply: 380-420V/3N/50Hz
• Sound level: 70.76 dB
• Temperature range: -40 / +40 °C
• Cooling system: Air cooled
• Chilling capacity: 100
• Freezing capacity: 78
• CO2 equivalent: 1.35 kg
• GWP: 3
• Refrigerant: 0.45 kg
• Refrigerant type: R290
• SKU: 5BCA8DCEH-20A3MC
