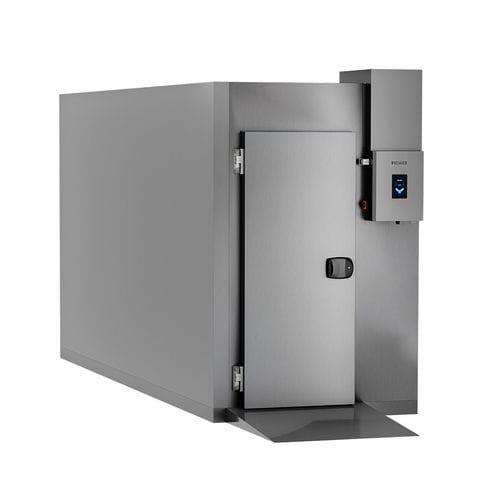

Roll-in blast chiller PREMIER BCF RI M 600 CO2 1N DL

industrialfor commercial kitchenGN 1/1

Product overview
The PREMIER BCF RI M 600 CO2 1N DL is a roll-in blast chiller/freezer manufactured in panels for CO2 (R744) remote cooling systems, engineered for professional foodservice and industrial kitchens. Outer dimensions (W x D x H): 1500 x 4550 x 2395 mm. Integrated Wi-Fi and Ethernet enable connection to kitchen monitoring platforms and access to operational and HACCP data.

Key features

• Intuitive control: 7-inch touchscreen controller with customizable cycle parameters and detailed status information.
• Connectivity: Wi-Fi and Ethernet port for integration with kitchen management and monitoring systems.
• Food safety: Built-in HACCP data logging to support process documentation and compliance.
• Hygienic construction: Interior and exterior in stainless steel AISI 304 suitable for professional cleaning routines.
• Installation convenience: External condensate drain tube and configurable door hinge (right-hand standard, left-hand optional); supplied unassembled on pallets for site installation.

Documentation
Declaration of conformity and instruction manual available.

Technical specifications

• Item number: 5BMA8DCRH-F4A3MC
• Model name: PREMIER BCF RI M 600 CO2 1N DL
• Brand: Hoshizaki
• Warranty period: 1 Year on Parts & Labour - based on country agreement
• Country of origin: Italy
• Accessories included: N/A
• Title: Roll-in Blast Chiller/Freezer. Made in Panels. For CO2 cooling system
• Equipped with: Cabinet with floor, ramp, controller, heated core probe, USB port, Wi-Fi connection, Ethernet port, lock closure, external condensate drain tube
• Please observe: Supplied unassembled on pallets
• Width: 1500 mm
• Width (packed): 1050 mm
• Width (packed, second package): 1570 mm
• Width inside: 800 mm
• Depth: 4550 mm
• Depth (packed): 2270 mm
• Depth (packed, second package): 2250 mm
• Depth inside: 4200 mm
• Height: 2395 mm
• Height (packed): 560 mm
• Height (packed, second package): 1800 mm
• Height inside: 1850 mm
• Volume (packed): 11.7 m³
• Required cooling capacity: 74000 W
• Climate class: 5 (max. ambient 40°C w/ 40% RH)
• Compatible with: Trollies 8 x GN1/1, 4 x GN2/1 or 8 x EN60/40, 4 x EN60/80
• Connection load: 2146 W
• Fuse Rating: 40 A
• Exterior: Stainless steel AISI 304
• Interior: Stainless steel AISI 304
• Gross weight: 930 kg
• Net weight: 880 kg
• Door clear opening (W x H): 800 x 1850 mm
• Insulation type: Polyurethane
• Power supply: 380-420V/1N/50Hz
• Temperature range: -40/+40°C
• Cooling system: For remote cooling system
• Chilling capacity: 600
• Freezing capacity: 400
• GWP: 1 GWP
• Refrigerant compatibility: R744
• SKU: 5BMA8DCRH-F4A3MC
