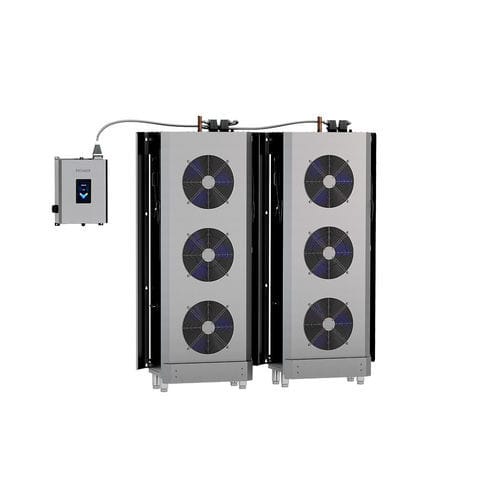

Built-in blast chiller PREMIER TK300 CO2

commercial3 trayhigh-speed

Product overview
The PREMIER TK300 CO2 is a technical kit module for blast chiller/freezer applications, built for integration into professional kitchen and food-processing installations. External dimensions (W x D x H): 2030 x 410 x 2094 mm. Network connectivity includes Wi‑Fi and Ethernet for integration with kitchen monitoring platforms and access to operational and HACCP data.

Key features

• DESIGNED TO MATCH YOUR WORKFLOW: 7-inch touchscreen controller with an intuitive interface and full customization of cycle parameters.
• CONNECTED KITCHEN MANAGEMENT: Wi‑Fi and Ethernet port for connection to monitoring systems and remote data access.
• FOOD SAFETY COMPLIANCE: Integrated HACCP data logging to document chilling and freezing processes.
• HYGIENIC DESIGN: Interior and exterior in stainless steel AISI 304 for heavy-duty environments and professional cleaning.
• PRACTICAL INSTALLATION (BCF only): Unibody/Panel design, external condensate drain tube, right-hand hinged door (left-hand optional) for simplified maintenance.
• SEAMLESS INTEGRATION (TK): Smart connectors for fast installation within the TK product range.

Specifications
Item number: 5LMA6GCRH-N2ALBC
Model name: PREMIER TK300 CO2
Brand: Hoshizaki
Warranty period: 1 Year on Parts & Labour (country dependent)
Country of origin: Italy
Accessories included: N/A
Title: Technical kit module for blast chiller/freezer
Equipped with: Controller, heated core probe, Wi‑Fi, Ethernet, USB port, drip collection tray and adjustable feet
Width: 2030 mm
Depth: 410 mm
Height: 2094 mm
Packed dimensions (W x D x H): 1050 x 2270 x 1120 mm
Packed volume: 2.7 m³
Net weight: 182 kg
Gross weight: 258 kg
Power supply: 1/220 - 240V/50Hz
Connection load: 1020 W; Fuse rating: 25 A
Required cooling capacity: 37000 W
Cooling system: for remote cooling system
Temperature range: -40 to +40°C
Chilling capacity: 300 trays (reference)
Freezing capacity: 200 trays (reference)
Refrigerant compatibility: R744 (GWP: 1)
Maximum system pressure: 60 Bar
Climate class: 5 (max. ambient 40°C with 40% RH)
Exterior material: Stainless steel AISI 304

Documentation (available)
Declaration of conformity (PDF)
Instruction manual (PDF)

Technical specifications

• Item number / SKU: 5LMA6GCRH-N2ALBC
• Commercial designation: PREMIER TK300 CO2
• Brand: Hoshizaki
• Title: Technical kit module for blast chiller/freezer
• Dimensions (W x D x H): 2030 x 410 x 2094 mm
• Packed dimensions (W x D x H): 1050 x 2270 x 1120 mm
• Packed volume: 2.7 m³
• Net weight: 182 kg
• Gross weight: 258 kg
• Power supply: 1/220 - 240V/50Hz
• Connection load: 1020 W; Fuse rating: 25 A
• Required cooling capacity: 37000 W
• Cooling system: for remote cooling system
• Temperature range: -40 to +40°C
• Chilling capacity: 300; Freezing capacity: 200
• Refrigerant compatibility: R744 (GWP: 1)
• Maximum system pressure: 60 Bar
• Climate class: 5 (max. ambient 40°C with 40% RH)
• Exterior material: Stainless steel AISI 304
• Equipped with: Controller, heated core probe, Wi‑Fi, Ethernet port, USB port, drip collection tray, adjustable feet
• Warranty: 1 Year on Parts & Labour (country dependent)
• Country of origin: Italy
