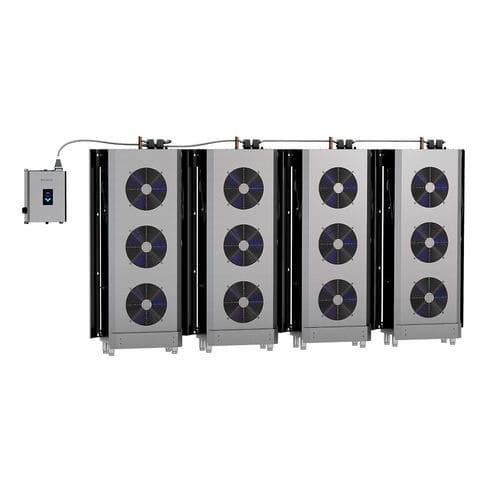

Built-in blast chiller PREMIER TK600 CO2

for the food industryprofessional3 tray

Product overview
The PREMIER TK600 CO2 is a technical kit module for blast chiller/freezer designed for integration into commercial kitchens and food production lines. Outer dimensions (W x D x H): 4060 x 410 x 2094 mm. Wi‑Fi and Ethernet connectivity enable integration with kitchen monitoring platforms and access to operational and HACCP data for process traceability.

Key features

• 7‑inch touchscreen controller with intuitive interface for configuring cycles, parameters and accessing logs.
• Connectivity: Wi‑Fi and Ethernet port for remote monitoring and data export.
• HACCP data collection to document chilling/freezing cycles and support food safety records.
• Hygienic construction: interior and exterior in stainless steel AISI 304 for professional cleaning routines.
• Installation convenience: external condensate drain tube, right‑hand hinged door (left‑hand optional) and adjustable feet.
• TK range integration: smart connectors for fast connection to compatible remote cooling systems.

Equipped with

• Controller
• Heated core probe
• Wi‑Fi connection
• Ethernet port
• USB port
• Drip collection tray
• Feet

Technical specifications

• Item number: 5LMA6GCRH-N4ALBC
• Model name: PREMIER TK600 CO2
• Brand: Hoshizaki
• Warranty period: 1 Year on Parts & Labour - based on country agreement
• Country of origin: Italy
• Accessories included: N/A
• Title: Technical kit module for blast chiller/freezer
• Equipped with: Controller; heated core probe; Wi‑fi connection; Ethernet port; USB port; drip collection tray; feet.
• Width: 4060 mm
• Width (packed): 1050 mm
• Depth: 410 mm
• Depth (packed): 2270 mm
• Height: 2094 mm
• Height including legs (minimum): 2094 mm
• Height including legs (maximum): 2139 mm
• Height (packed): 2240 mm
• Volume (packed): 5.3 m³
• Required cooling capacity: 74000 W
• Climate class: 5 (max. ambient 40°C w/ 40% RH)
• Connection load: 2040 W
• Fuse Rating: 40 A
• Exterior: Stainless steel AISI 304
• Gross weight: 516 kg
• Net weight: 364 kg
• Power supply: 1/220 - 240V/50Hz
• Maximum system pressure: 60 Bar
• Temperature range: -40/+40°C
• Cooling system: For remote cooling system
• Chilling capacity: 600
• Freezing capacity: 400
• GWP: 1 GWP
• Refrigerant compatibility: R744
• SKU: 5LMA6GCRH-N4ALBC
