Built-in blast chiller PREMIER TK450 CO2

professional3 trayhigh-speed

Product overview

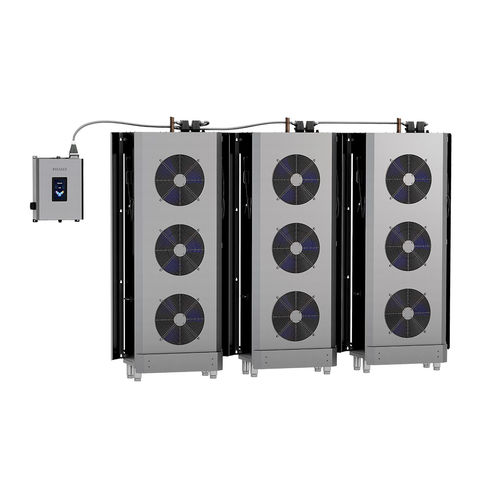

The PREMIER TK450 CO2 is a technical kit module for blast chiller/freezer intended for integration into professional refrigeration installations. Outer dimensions (W x D x H): 3045 x 410 x 2094 mm. Designed for R744 (CO2) and for use with a remote cooling system.

Connectivity and monitoring
Wi‑Fi connectivity and an Ethernet port allow integration with kitchen monitoring platforms and export of operational and HACCP data for traceability and record keeping.

Key features

• 7-inch touchscreen controller with configurable cycle parameters and an intuitive user interface.
• Connectivity: Wi‑Fi, Ethernet and USB port for data access and system updates.
• HACCP data logging to support documentation of chilling and freezing cycles.
• Hygienic construction: interior and exterior in stainless steel AISI 304 suitable for professional cleaning routines.
• Installation convenience: external condensate drain tube; right-hand hinged door as standard (left-hand optional).
• TK range integration: smart connectors for rapid installation and seamless integration within the TK series.

Specifications
Item number: 5LMA6GCRH-N3ALBC
Model name: PREMIER TK450 CO2
Brand: Hoshizaki
Warranty period: 1 Year on Parts & Labour - based on country agreement
Country of origin: Italy
Accessories included: N/A
Equipped with: Controller, heated core probe, Wi‑Fi connection, Ethernet port, USB port, drip collection tray and feet.
Required cooling capacity: 55,500 W
Temperature range: -40°C to +40°C
Cooling system: For remote cooling system
Refrigerant compatibility: R744 (CO2)
Exterior: Stainless steel AISI 304

Technical specifications

• Dimensions (W x D x H): 3045 mm x 410 mm x 2094 mm
• Packed dimensions (W x D x H): 1050 mm x 2270 mm x 1680 mm
• Volume (packed): 4 m³
• Chilling capacity: 450
• Freezing capacity: 300
• Required cooling capacity: 55,500 W
• Connection load: 1,530 W
• Fuse rating: 32 A
• Power supply: 1/220 - 240V/50Hz
• Maximum system pressure: 60 Bar
• Gross weight: 387 kg; Net weight: 273 kg
• Climate class: 5 (max. ambient 40°C w/ 40% RH)
