JACKETED MIXER KETTLE (3.5 Bar boiling Pan), 2/3 STEAM JACKETED, 50 PSI STEAM on 40-100 gallons, 35 PSI STEAM on 125-150 gallons

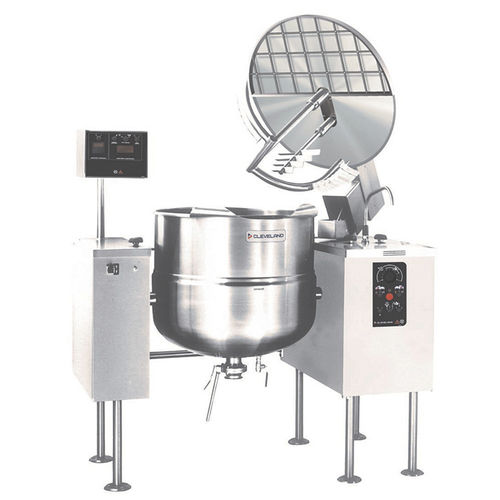

CLEVELAND Tilting Mixer Kettle Model (T) MKDL - _____ -T, Console/Leg mounted, Direct Steam Mixer Kettle with _____ psi Steam Jacket Rating. 3 H.P. Hydraulic powered Scraper/Agitator and Bridge Lift. 0-40 rpm Scraper Speed with Variable Scraper to Agitator Ratio from 1-1 to 8-1. Stainless Steel enclosed Mixer Bridge. All Plumbing, Electrical and Hydraulics enclosed in Consoles. Gallon markings, Bayonet Mounted Scraper and Agitator. 3" Butterfly Valve. Hot and Cold Water Faucet. Steam Control Kit. Safety Device prevents high speed starts; Mixer stops when Bridge is lifted. Kettle and all exterior surfaces are Stainless Steel.
Mixing
3 HorsePower Hydraulic powered Agitator, Scraper and Bridge Lift.
Infinitely Variable Scraper Speed Control from 0 to 40 rpm.
Infinitely Variable Ratio between Scraper and Agitator:
Agitator rotates from 0 to 8 times the speed of the Scraper.
Removable (without tools) Nylon Blades scrape the entire Jacketed Surface.
Safety Device prevents high speed Starts.
Mixing stops when Bridge is lifted.
Agitator and Scraper are Bayonet Mounted for easy removal.
Steam Control Kit
Chrome-Plated & Factory installed
Tilt Mechanism
Roller bearings and case hardened self-locking worm and segment gear.
Power Tilt
Standard on 150 gallon model
Butterfly Valve
3" diameter Quick Opening
Water Faucet
Hot and cold water faucet with 3/4" swing spout
Condensate Valve
With Insulated Handle
Steam Jacket Rating
50 psi on 40 - 100 gallon models,
35 psi on 125 & 150 gallon models
Stainless Steel Construction
