Gas boiling pan KDL100

steamfloor-mountedfor commercial kitchen

Overview

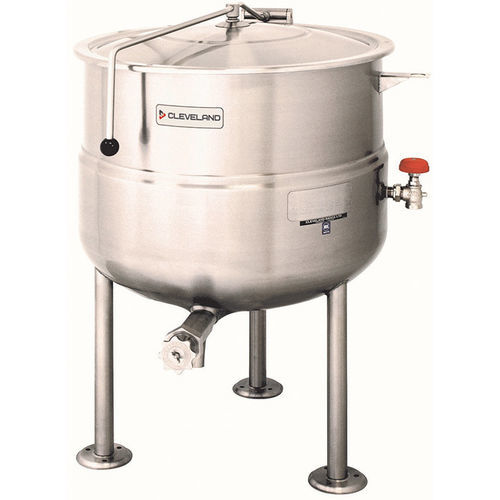

Direct steam kettle KDL100 with 2/3 steam jacket, available in tri-leg or pedestal stationary configurations. Constructed in Type 304 stainless steel with a 50 psi steam jacket. Capacities range from 25 to 250 gallons (100–950 L). Supplied with a spring-assisted domed cover, 2" tangent draw-off valve and reinforced rolled rim. Designed to connect directly to a steam source supplying 5 to 45 psi.

Features

• Construction: Type 304 stainless steel with #4 finish on kettle and supports
• Rating: 50 psi steam jacket rating; 50 psi chrome-plated safety valve
• Valve: 2" diameter tangent draw-off valve with drain strainer
• Spring-Assisted Cover: Domed, hinged, one-piece rotatable cover (not available on KDL-250)
• Condensate Drain Valve: Insulated handle
• Control: Steam control inlet valve
• Faucet Mounting: Bracket provided for faucet
• Supports (Tri-leg): 1-5/8" O.D. Type 304 tubular supports with level-adjustable flanged feet for floor bolting
• Supports (Pedestal): Type 304 pedestal with 3/4" thick floor plate, level-adjustable for sloping floors; stainless steel collar for sealing

Accessories

• Cooking baskets and tri-basket supports (BS and TBS)
• Drain strainers (DS-)
• Gallon markings (KM)
• Hot and cold water faucet with swing spout (DPK)
• Kettle accessory kit (KAK)
• Clean-up brush (CB)
• 36" kettle paddle (KP)
• 36" kettle whip (KW)
• 36" kettle brush (KB)
• Draw-off brush (DB)
• 24 oz. ladle (KL)
• Lift-off one-piece cover (CL-)
• Measuring strips (MS)
• Steam control kit (SCK1) – includes steam trap, condensate strainer, check valve, nipples and fittings; factory assembled and mounted
• Swing funnels for drain (SF)
• Type 316 stainless steel kettle interior available for high-acid food products (316)

Technical specifications

• Model: KDL100
• Capacity: 25 – 250 gallons (100 – 950 liters)
• Steam jacket: 2/3 steam jacketed; 50 psi jacket rating
• Material: Type 304 stainless steel (optional Type 316 interior for high-acid products)
• Valve: 2" tangent draw-off valve with drain strainer
• Cover: Spring-assisted domed hinged cover, rotatable (except KDL-250)
• Supports: Tri-leg tubular supports or pedestal with 3/4" thick floor plate
• Operating steam supply: 5 to 45 psi
