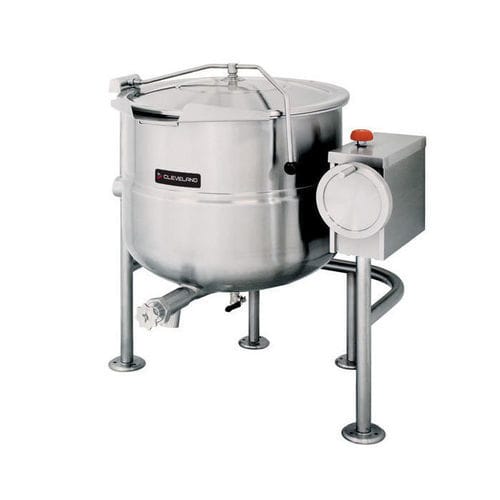

Gas boiling pan KDL100T

tiltingsteamfloor-mounted

Description
2/3 steam-jacketed kettle available in 80, 100, 125 & 150 gallons (300, 375, 475 & 575 liters). Cleveland direct steam kettle KDL100T, quad-leg mounted, tilting (hand or power). Type 304 stainless steel kettle and support legs. 50 psi steam jacket rating on 80 gallon, 35 psi on 100 gallon and larger. Steam control valve; heavy reinforced rolled rim. To operate, connect directly to a steam source supplying 10 to 45 psi steam.

Features

• Construction: Type 304 stainless steel with #4 finish on kettle and supports
• Rating: 50 psi steam jacket rating on 80 gallon; 35 psi on 100 gallon and larger; 50 psi chrome-plated safety valve
• Pouring lip: High-capacity lip suitable for chunky products
• Condensate drain valve: Insulated handle
• Kettle legs: 1 5/8 in OD, Type 304 stainless steel, 3-level adjustable feet, three-bolt floor flanges
• Tilting: Permanently lubricated, self-locking worm drive space-saving design
• Steam control valve: Mounted on console

Additional information / Accessories

• Cooking Baskets and Tri-Basket Supports (BS and TBS)
• Drain Strainers (DS-)
• Gallon Markings (KM)
• Hot and Cold Water Faucet - comes with swing spout (DPK)
• Kettle Accessory Kit (KAK)
• Clean-up Brush (CB)
• 36 in Kettle Paddle (KP)
• 36 in Kettle Whip (KW)
• 36 in Kettle Brush (KB)
• Draw-off Brush (DB)
• 24 oz. Ladle (KL)
• Lift-off Cover, one piece (CL-)
• Measuring Strips (MS)
• Steam Control Kit (includes steam trap, condensate strainer, check valve, nipples and fittings; factory assembled and mounted on kettle) (SCK1)
• Swing Funnels for drain (SF)
• Type 316 stainless steel kettle interior for high-acid food products (316)

Technical specifications

• Model: KDL100T
• Capacity options: 80, 100, 125 & 150 gallons (300, 375, 475 & 575 liters)
• Steam jacket: 2/3 steam jacketed
• Material: Type 304 stainless steel; interior option Type 316 for high-acid products
• Finish: #4 finish on kettle and supports
• Steam Jacket Rating: 50 psi on 80 gallon; 35 psi on 100 gallon and larger
• Operating steam supply: 10 to 45 psi
• Safety valve: 50 psi chrome-plated safety valve
• Mounting: Quad-leg mounted with 1 5/8 in OD legs and 3-level adjustable feet; three-bolt floor flanges
• Tilting: Permanently lubricated, self-locking worm drive; hand or power tilting
• Steam control valve: Mounted on console
• Pouring: High-capacity pouring lip suitable for chunky products
• Condensate drain: Drain valve with insulated handle
