Gas boiling pan HAMKGL-HMI

mixertiltingfloor-mounted

Overview

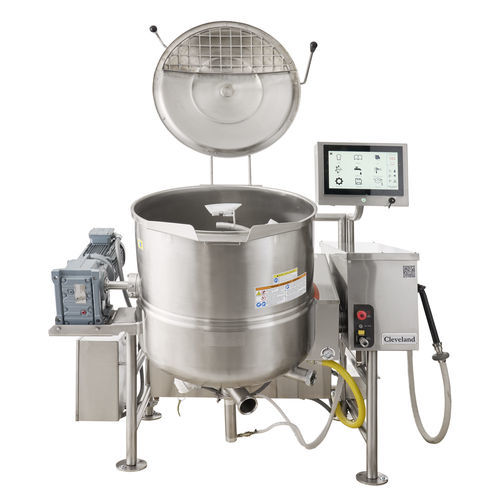

The HAMKGL-HMI (Cleveland Model HA-MKGL-HMI) is a gas-fired, tilting horizontal mixer kettle available in 60, 80 or 100 gallon working capacities. It features a 15-inch HMI user interface with probe, timed and manual cooking modes, a 190 M-BTU high-efficiency power burner with automatic glow-type ignition, and a 2/3 steam jacket permanently filled with treated distilled water. Construction includes Type 316 food contact surfaces and Type 304 kettle and supports with #4 finish. Equipped with a 3 HP horizontal agitator drive and variable speed control for precise mixing.

Features
Temperature Probe
Flush-mounted, easily removable temperature probe for accurate process control.
Construction
Type 316 stainless steel for all food contact surfaces; Type 304 with #4 finish on kettle and supports.
Controls
15-inch HMI interface with intuitive touch display offering probe, timed and manual cooking modes.
HMI TouchScreen Features
Recipe management: create, save and load recipes; download running recipe parameters for repeatability.
Solid State
Solid-state low-water safety controls in a plug-in module.
Indicators
LED indicators for heat cycle and low water warning.
Discharge Valve
3 in diameter air-operated flush-mounted piston draw-off valve with variable control (requires air compressor).
Cover
Spring-assisted, hinged stainless steel cover.
Agitator Power
Three horsepower (3 HP) horizontal agitator drive.
Agitator Control
Variable mixer speed control from 5 to 20 r.p.m. with start/stop controls.
Scraper Blades
Spring-loaded Teflon scraper blades that clean the entire heated surface area.
Internal Mixing Fins
Internal fins for efficient, uniform mixing; mixing start/stop and speed adjustment controls.
Agitator Removal
Easily removable agitator without tools for maintenance and cleaning.
Heating
190 M-BTU high-efficiency power burner for fast heat-up and recovery.
Ignition System
Automatic glow-type safety ignition system.
Steam Jacket
2/3 steam jacket permanently filled with treated distilled water; 50 psi jacket rating with safety valve.
Gauge
Front-mounted combination pressure-vacuum gauge.
Rim Bar
Heavy-duty welded rim bar.
Capacity
Available in full 60, 80 or 100 gallon working capacities.
Tilting
Power tilt mechanism with case-hardened self-locking worm and segment gear for secure, controlled discharge.

Accessories

• Control panels — kettle-mounted control center (100 gal and larger)
• Stainless steel bi-fold hinged cover
• Dolly for horizontal agitator
• Electrical options — alternate voltage for agitator drive (standard 208V/3Ph/60Hz)
• Food strainer (FS)
• Electric chain hoist for loading
• Kettle Accessory Kit (KAK) — clean-up brush (CB), 36" kettle paddle (KP), 36" kettle whip (KW), 36" kettle brush (KB), draw-off brush (DB), 24 oz. ladle (KL)
• Kettle-mounted control center with time/temperature chart recorder
• Propane gas option (PG)

Technical specifications

• Model: HAMKGL-HMI (Cleveland Model HA-MKGL-HMI)
• Fuel: Gas fired with 190 M-BTU high-efficiency power burner
• Jacket: 2/3 steam jacketed; jacket permanently filled with treated distilled water
• Jacket Rating: 50 psi with safety valve
• Operating Capacities: 60, 80 or 100 gallon working capacity
• Construction: Type 316 stainless steel for all food contact surfaces; Type 304 stainless steel with #4 finish on kettle and supports
• Agitator Drive: 3 HP motor drive for horizontal agitator
• Agitator Speed: Variable mixer speed control from 5 to 20 r.p.m.; start/stop controls
• Mixing Features: Spring-loaded Teflon scraper blades; internal mixing fins for uniform mixing; agitator removable without tools
• Discharge Valve: 3 in diameter air-operated flush-mounted piston draw-off valve (requires air compressor)
• Controls: 15-inch HMI TouchScreen with probe, timed and manual cooking modes; recipe management and downloadable parameters
• Safety: Solid-state low-water safety controls (plug-in module); LED indicators for heat cycle and low water warning
• Ignition: Automatic glow-type safety ignition system
• Cover: Spring-assisted, hinged stainless steel cover
• Tilt: Power tilt mechanism with case-hardened self-locking worm and segment gear
• Gauge: Front-mounted combination pressure-vacuum gauge
