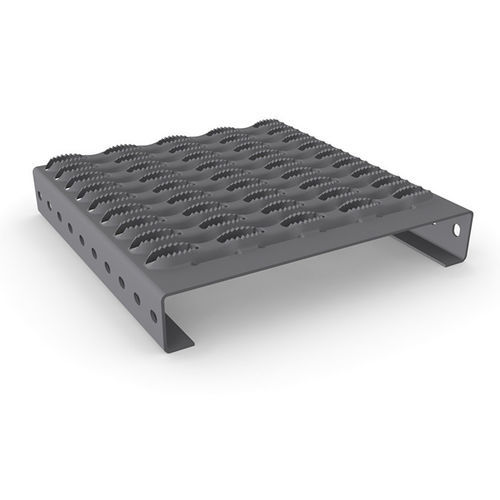

Stainless steel step covering STEPBLOC D

steelhot-dip galvanised steelnon-slip

Product information
The densely punched surface with medium-height serrations provides stable footing and effective anti-slip performance, particularly in areas exposed to oil and grease. The serrated, self-draining design of Stepbloc D makes it suitable for automotive, construction, industrial and agricultural applications.

Technical data
Material | Sheet thickness (mm) | Slip class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R13
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R13
Aluminium [AIMg3] | 2.5 / 3.0 | R13
Stainless steel [1.4301] | 2.0 | -
Preferred widths (mm) | 120 / 180 / 240 / 300 / 360 / 420 / 480
Preferred heights (mm) | 40 / 50 / 75 / 100 / other heights on request
Max length | 8,000 mm
Length divider | 30

Accessories / Fixing clips

• BPR Plastic Olive: for all Stepbloc versions with recessed hole for countersunk head bolts (DIN 7991).
• BPR Rondelle T03: cast upper part for Stepbloc and Drainstep forms with recessed/countersunk hole for countersunk head screws (DIN 7991).
• BPR Fast fixing: clamp connection with M8 countersunk head bolt.
• BPR Universal clamp: cast clamp for assembly from below; available in different versions.
• BPR Support clip: support clamp connection, preassembled with M8 countersunk head bolt.

Characteristics / Technical specifications

• Densely punched serrated surface for anti-slip performance.
• Self-draining design and good grip in oily environments.
• Typical applications: automotive, construction, industrial and agricultural.
• Available materials: DD11 (raw / hot-dip galvanised), DX51 (Sendzimir galvanised), AIMg3 (aluminium), 1.4301 (stainless steel).
• Sheet thicknesses: 2.0 / 2.5 / 3.0 mm (material dependent).
• Slip class: R13 (where applicable).
• Preferred widths: 120, 180, 240, 300, 360, 420, 480 mm.
• Preferred heights: 40, 50, 75, 100 mm; other heights on request.
• Max length: 8,000 mm; length divider: 30 mm.
