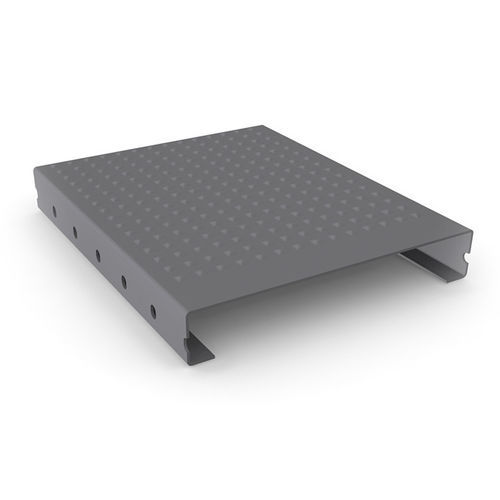

Aluminum step covering BOSTEP Gstainless steelhot-dip galvanised steel
Add to favorites
Compare this product
Characteristics
- Material
- aluminum, stainless steel, hot-dip galvanised steel
Description
Product information
The uniform alignment of the embossing makes Bostep G particularly suitable for large indoor areas. The closed surface provides opaque coverage of levels and prevents objects from falling through openings. Available in steel (raw / hot-dip galvanised), Sendzimir galvanised steel, aluminium (AIMg3) and stainless steel (1.4301), Bostep G is offered in multiple sheet thicknesses and standard widths and heights for building applications.
Technical data
Dimensions:
Material | Sheet thickness (mm) | As class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R10
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R10
Aluminium [AIMg3] | 2.5 / 3.0 | R10
Stainless steel [1.4301] | 2.0 | R10
Preferred widths | 200 / 240 / 298 (variable)
Preferred heights | 50 / 75 / 100 (other heights on request)
Lengths | max. 8,000 mm
Length divider | 60
Special sizes or materials available on request. Stored sizes according to stock list. All data in mm.
Accessories / Fixing clips
References
Characteristics / Technical specifications
The uniform alignment of the embossing makes Bostep G particularly suitable for large indoor areas. The closed surface provides opaque coverage of levels and prevents objects from falling through openings. Available in steel (raw / hot-dip galvanised), Sendzimir galvanised steel, aluminium (AIMg3) and stainless steel (1.4301), Bostep G is offered in multiple sheet thicknesses and standard widths and heights for building applications.
Technical data
Dimensions:
Material | Sheet thickness (mm) | As class
Raw / hot-dip galvanised steel [DD11] | 2.0 / 2.5 / 3.0 | R10
Sendzimir galvanised steel [DX51] | 2.0 / 2.5 / 3.0 | R10
Aluminium [AIMg3] | 2.5 / 3.0 | R10
Stainless steel [1.4301] | 2.0 | R10
Preferred widths | 200 / 240 / 298 (variable)
Preferred heights | 50 / 75 / 100 (other heights on request)
Lengths | max. 8,000 mm
Length divider | 60
Special sizes or materials available on request. Stored sizes according to stock list. All data in mm.
Accessories / Fixing clips
- BPR Setztechnik geschlossene Oberflächen — Includes a drilling of ∅ 13 mm in the profile.
- BPR Universal clamp — Cast metal clamp for assembling from below; available in various versions.
References
- BMW logistics center, Wallersdorf
- Cube Bikes, Marktredwitz
- Berlin sports center
Characteristics / Technical specifications
- Surface: closed, opaque — prevents objects from falling through
- Application: large indoor areas and building interiors
- Available materials: Raw / hot-dip galvanised steel (DD11); Sendzimir galvanised steel (DX51); Aluminium (AIMg3); Stainless steel (1.4301)
- Sheet thicknesses (mm): 2.0 / 2.5 / 3.0 (varies by material; stainless steel 2.0 mm; aluminium 2.5 / 3.0 mm)
- Slip resistance class: R10
- Preferred widths (mm): 200 / 240 / 298 (variable)
- Preferred heights (mm): 50 / 75 / 100 (other heights on request)
- Maximum length: 8,000 mm
- Length divider: 60
- Special sizes or materials: available on request
- All dimensions given in mm
